2-2106489-1 | TE Connectivity
Connector, 1 pole, pitch 0.16 mm, straight, natural, 2-2106489-1
Order No.: 71P5597
EAN: 4099891726805
MPN:
2-2106489-1
Unit Price (€ / pc.)
0.4760 € *
Available: 0 pcs.
Available in 5 Days: 1,933 pcs.
Leadtime: 13 Weeks **
Total Price:
10,995.60 € *
*incl. VAT plus shipping costs
**Subject to prior sale
23100 pcs.
0.4760 €

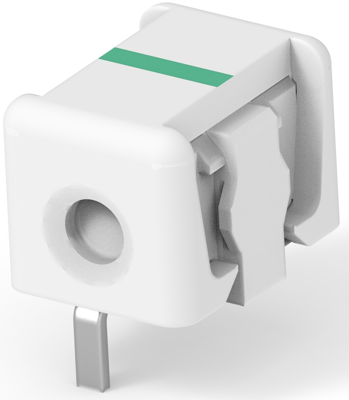

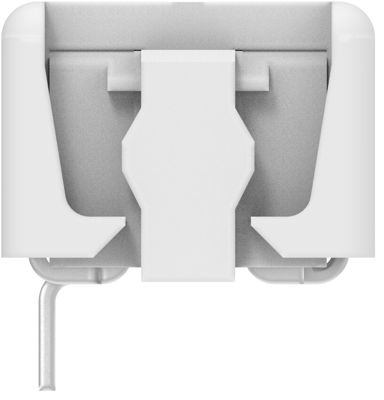

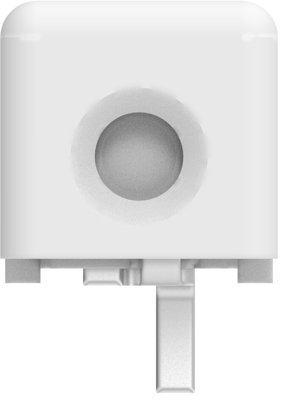

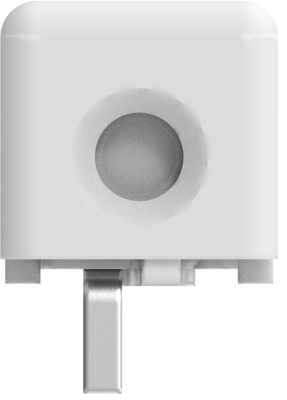

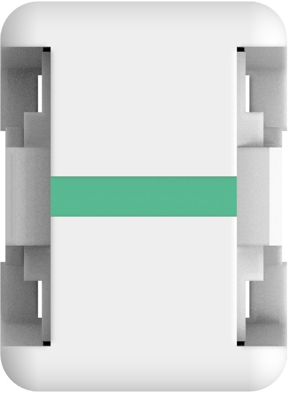

Connector assembly, 2-2106489-1, TE Connectivity
The 2-2106489-1 is designed for quick, tool-less termination of discrete solid and stranded wire leads to metal clad boards used in LED applications and FR4 boards used in thru-hole non-LED lighting applications. Integral cover provides wire entry location and when fully seated wire leads are secured in dual IDC slots ensures electrical connections.
Features
- Insulation displacement eliminates the need to pre-strip wire insulation prior to “tool-less” termination
- Integral cover provides a robust, mechanical strain relieved connection in high vibration applications
- Wire placement viewing window and wire gauge color coded housings assist in error free assembly
Applications
- LED lighting
- HVAC controls
- Fire and Security controls
- Household Appliances
- Power Tools
Technical specifications
| Anschluss | Lötanschluss | |
| Anzahl der Reihen | 1 | |
| Ausführung | Steckverbinder | |
| Bestückung | bestückt | |
| Farbe | natur | |
| Kontaktoberfläche | verzinnt | |
| Nennspannung | 400 V | |
| Nennstrom | 7 A | |
| Orientierung | gerade | |
| Polzahl | 1-polig | |
| Rastermaß | 0.16 mm |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
