2-2842244-0 | TE Connectivity

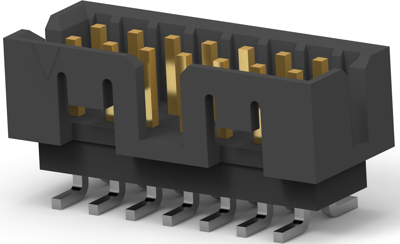

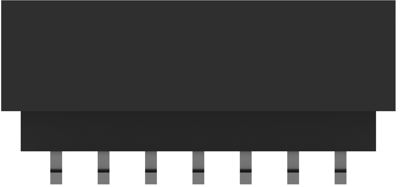

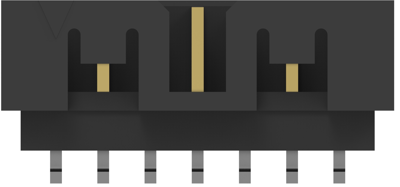

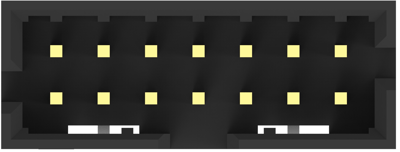

Pin header, 20 pole, pitch 2 mm, straight, black, 2-2842244-0
Unit Price (€ / pc.)
2.9036 € *
Available: 0 pcs.
Available in 5 Days: 1,100 pcs.
Leadtime: 14 Weeks **
Total Price:
2.90 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9036 €
10 pcs.
2.6656 €
50 pcs.
2.4038 €
100 pcs.
2.1658 €
*incl. VAT plus shipping costs
**Subject to prior sale
Pin header, 2-2842244-0, TE Connectivity
The 2-2842244-0 is a PCB Mount header, ideal for mobile and portable personal computers and disk drive applications.
Technical specifications
| Anschluss | SMD | |
| Anschlussoberfläche | verzinnt | |
| Anzahl der Reihen | 2 | |
| Ausführung | Stiftleiste | |
| Bestückung | bestückt | |
| Farbe | schwarz | |
| Kontaktart | Stift | |
| Kontaktoberfläche | vergoldet | |
| Nennspannung | 125 V | |
| Nennstrom | 2 A | |
| Orientierung | gerade | |
| Polzahl | 20-polig | |
| Rastermaß | 2 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85389099 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
