2041262-1 | TE Connectivity

Socket header, 52 pole, pitch 0.8 mm, straight, black, 2041262-1

Order No.: 36P9261
EAN: 4099889949490
MPN:
2041262-1

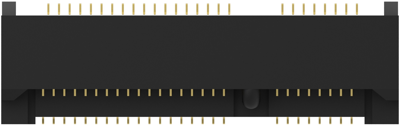

2041262-1 TE Connectivity PCB Connection Systems Image 1

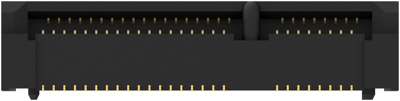

2041262-1 TE Connectivity PCB Connection Systems Image 2

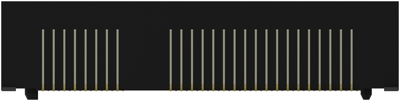

2041262-1 TE Connectivity PCB Connection Systems Image 3

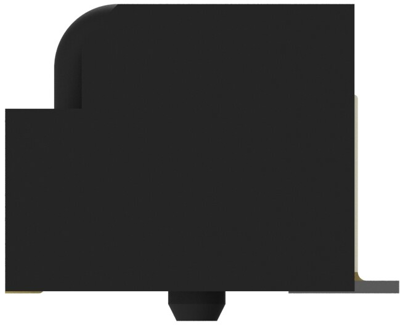

2041262-1 TE Connectivity PCB Connection Systems Image 4

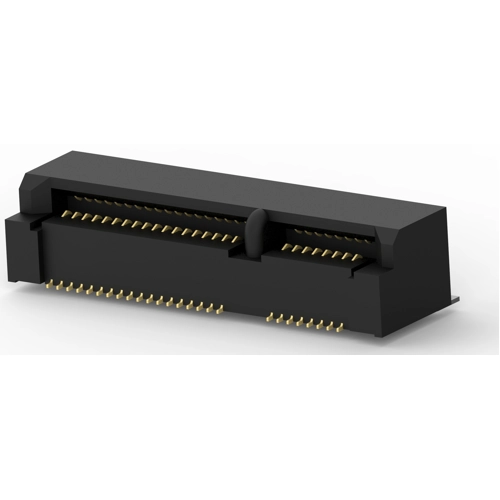

2041262-1 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.9639 € *
Available: 0 pcs.
Available in 5 Days: 3,600 pcs.
Leadtime: 12 Weeks **
Total Price:
0.96 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
0.9639 €

Mini PCI Express and mSATA, 2041262-1, TE Connectivity

Connector System: Board-to-Board, Sealable: No, Connector & Contact Terminates To: Printed Circuit Board, PCB Mount Orientation: Horizontal, Number of Positions: 52, Ejector Location: None, Contact Base Material: Copper Alloy, Contact Mating Area Plating Material: Gold Flash, PCB Contact Termination Area Plating Material Finish: Bright, Contact Current Rating (Max): .5 A, Termination Method to Printed Circuit Board: Surface Mount, PCB Mount Retention: Without, Housing Color: Black, Centerline (Pitch): .8 mm, Row-to-Row Spacing: .8 mm, Stack Height: 6.8 mm, Operating Temperature Range: -55 – 85 °C, Circuit Application: Signal, UL Flammability Rating: UL 94V-0, Bus Type: Mini PCI Express, Packaging Quantity: 450, Packaging Method: Tape & Reel

Technical specifications
Anschluss Lötanschluss
Anschlussoberfläche vergoldet
Anzahl der Reihen 2
Ausführung Buchsenleiste
Bestückung bestückt
Brechbar No
Farbe schwarz
Kontaktart Buchse
Kontaktoberfläche vergoldet
Nennstrom 5 A
Orientierung gerade
Polzahl 52-polig
Rastermaß 0.8 mm
Verriegelung Nein
Logistics
Ursprungsland TW
Zolltarifnummer 85366910
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
