2132189-4 | TE Connectivity

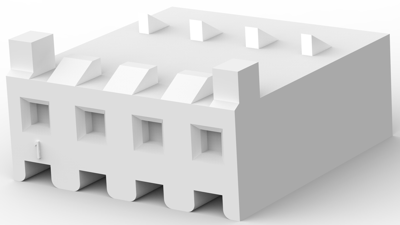

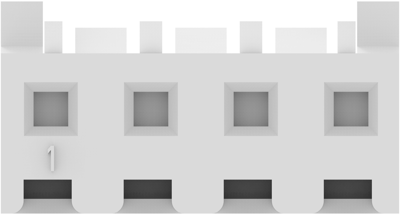

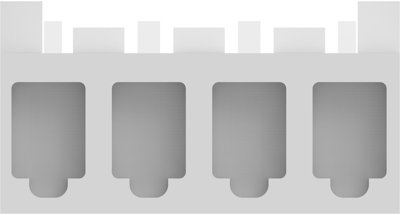

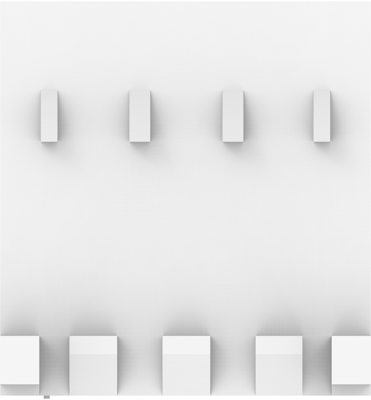

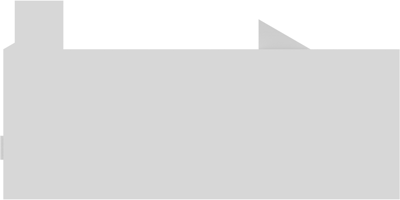

Socket housing, 4 pole, pitch 3.96 mm, straight, natural, 2132189-4
Unit Price (€ / pc.)
0.3689 € *
Available: 0 pcs.
Available in 5 Days: 41,586 pcs.
Leadtime: 20 Weeks **
Total Price:
0.37 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3689 €
50 pcs.
0.3213 €
100 pcs.
0.2820 €
500 pcs.
0.2404 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 2132189-4, TE Connectivity
Wire-to-Board, Wire & Cable, 4 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Contact Base Material: Phosphor Bronze
- Housing Material: Nylon - GF
- Housing Color: natural
- Number of positions: 4
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 6.5 A
- Centerline (Pitch): 3.96 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Connection | Crimpanschluss | |
| Number of rows | 1 | |
| Version | Buchsengehäuse | |
| Additional parts | unbestückt | |
| Breakable | No | |
| Colour | natur | |
| Contact type | Buchse | |
| Rated voltage | 250 V | |
| Rated current | 6.5 A | |
| Orientation | gerade | |
| Pin number | 4-polig | |
| Grid | 3.96 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
