2170088-1 | TE Connectivity

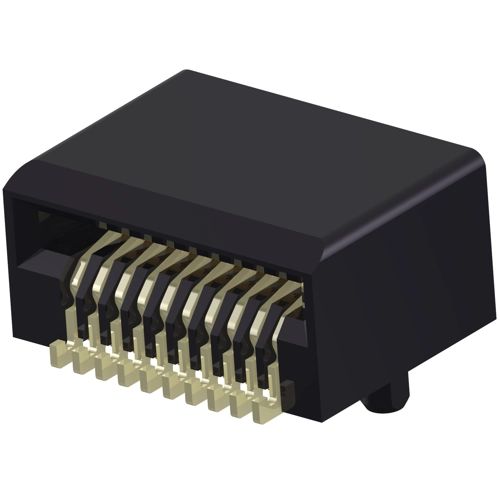

Connector, 20 pole, pitch 0.8 mm, angled, black, 2170088-1
Order No.: 37P3811
EAN: 4099889824575
MPN:
2170088-1
Unit Price (€ / pc.)
2.8798 € *
Available: 0 pcs.
Available in 5 Days: 2,871 pcs.
Leadtime: 19 Weeks **
Cage Assembly, 2170088-1, TE Connectivity
Form Factor: zSFP+, Pluggable I/O Product Type: Connector, Connector System: Cable-to-Board, Sealable: No, Connector & Contact Terminates To: Printed Circuit Board, Number of Positions: 20, Data Rate (Max): 32 Gb/s, Contact Mating Area Plating Material: Gold or Gold Flash over Palladium Nickel, Contact Current Rating (Max): 0.5 A, Termination Method to Printed Circuit Board: Surface Mount, PCB Mounting Style: Surface Mount, Connector Mounting Type: Board Mount, Centerline (Pitch): 0.8 mm, Operating Temperature Range: -55 – 85 °C, For Use With Pluggable I/O Products: zSFP+ SMT Connector, Pluggable I/O Applications: SFP+, Circuit Application: Power & Signal, UL Flammability Rating: UL 94V-0, Packaging Method: Reel
Technical specifications
| Connection | SMD | |
| Number of rows | 1 | |
| Version | connector | |
| Additional parts | equipped | |
| Colour | black | |
| Contact type | socket | |
| contact surface | gold-plated | |
| Rated current | 0.5 A | |
| Orientation | angled | |
| Pin number | 20 pole | |
| Grid | 0.8 mm |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
