2173132-1 | TE Connectivity

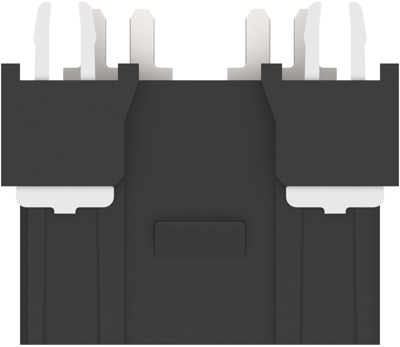

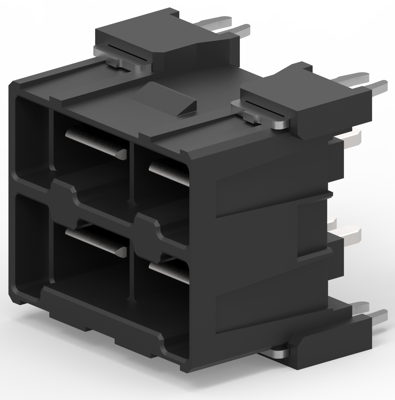

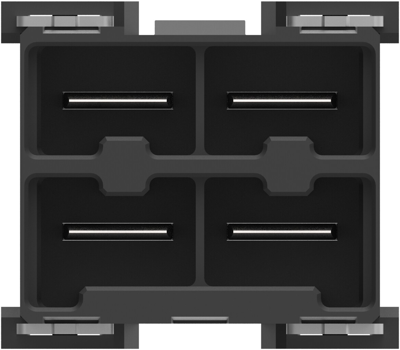

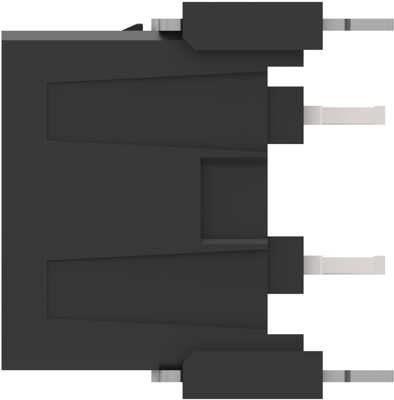

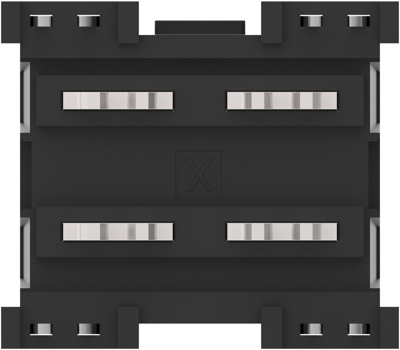

Pin header, 4 pole, pitch 7.8 mm, straight, black, 2173132-1
Order No.: 36P9018
EAN: 4099889949063
MPN:
2173132-1
Unit Price (€ / pc.)
12.7449 € *
Available: 0 pcs.
Leadtime: On Request **
PCB Connection System, 2173132-1, TE Connectivity
Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 4 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Copper Alloy
- Housing Material: LCP GF30 (Liquid Crystal Polymer)
- Housing Color: black
- Orientation: straight
- Number of positions: 4
- Operating Temperature Range: -40 – 125 °C [-40 – 257 °F]
- Insulation Resistance: 1000 MΩ
- Centerline (Pitch): 7.8 mm
- Row-to-Row Spacing: 6.24 mm [0.246 in]
- PCB Mount Retention: With
- Sealable: No
Technical specifications
| Connection | PCB connection | |
| Connection plating | silver-plated | |
| Number of rows | 2 | |
| Version | pin header | |
| Additional parts | equipped | |
| Breakable | No | |
| Colour | black | |
| Contact type | pin | |
| contact surface | silver-plated | |
| Rated voltage | 150 V | |
| Rated current | 20 A | |
| Orientation | straight | |
| Pin number | 4 pole | |
| Grid | 7.8 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
