2204585-3 | TE Connectivity

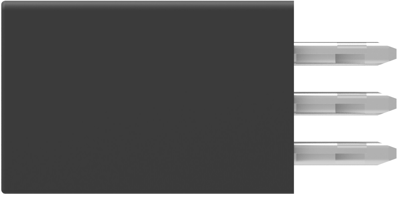

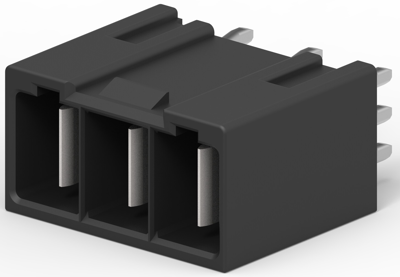

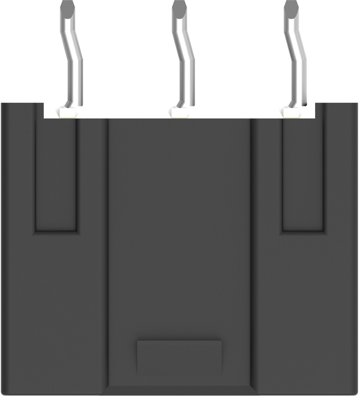

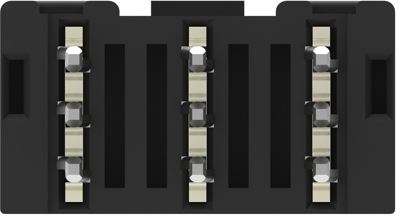

Pin header, 3 pole, pitch 5.7 mm, straight, black, 2204585-3
Unit Price (€ / pc.)
5.5335 € *
Available: 0 pcs.
Available in 5 Days: 6,000 pcs.
Leadtime: 17 Weeks **
Total Price:
830.03 € *
Price list
Quantity
Price per unit*
150 pcs.
5.5335 €
300 pcs.
5.4383 €
*incl. VAT plus shipping costs
**Subject to prior sale
Mini power connector, 2204585-3, TE Connectivity
The 2204585-3 is a mini power connector that features a small, 8mm height form-factor and support higher current than similar sized solutions. Support high current up to 40 A per contact and a 400 V rating with a costeffective stamped contact design.
Features
- Low resistance, highly reliable interface
- Positive metal latch retention
- Pull tab for power I/O applications
- Touch-proof contacts and third pin for protective grounding
Applications
- Power distribution
- Data centers
- High Performance Computing
- Industrial electronic equipment cabinets
- Switches & routers
Technical specifications
| Connection | press-fit | |
| Connection plating | silver-plated | |
| Number of rows | 1 | |
| Version | pin header | |
| Additional parts | equipped | |
| Colour | black | |
| Contact type | tab | |
| contact surface | silver-plated | |
| Rated voltage | 400 V | |
| Rated current | 35 A | |
| Orientation | straight | |
| Pin number | 3 pole | |
| Grid | 5.7 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
