2212256-1 | TE Connectivity

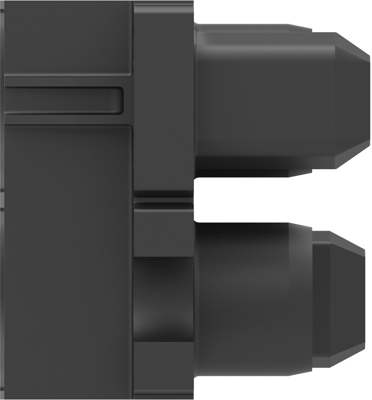

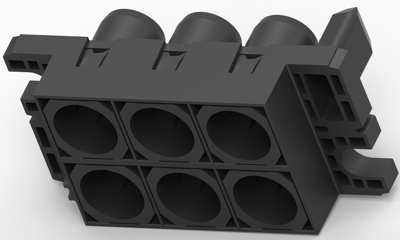

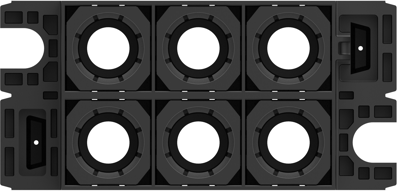

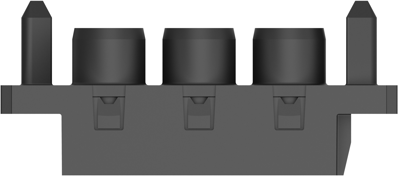

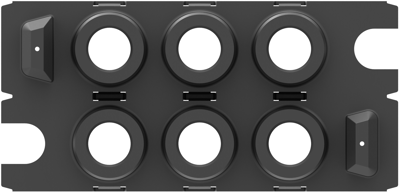

Socket header, 6 pole, straight, black, 2212256-1
Order No.: 71P5617
EAN: 4099891726911
MPN:
2212256-1
Unit Price (€ / pc.)
68.0323 € *
Available: 0 pcs.
Available in 5 Days: 33 pcs.
Leadtime: 10 Weeks **
Total Price:
68.03 € *
Price list
Quantity
Price per unit*
1 pcs.
68.0323 €
5 pcs.
63.9506 €
10 pcs.
59.4762 €
25 pcs.
54.7162 €
*incl. VAT plus shipping costs
**Subject to prior sale
Socket header, 2212256-1, TE Connectivity
The 2212256-1 is a modular power interconnect for designers of power system and electrical hardware, including data communications applications. This product provides a wide of different configuration possibilities. A single housing can have up to 10 modules with the flexibility to use one of five different contact types in each module. This flexibility enables customers to get a perfect fit for their application every time, without having to compromise by using housing that is not a match, and without the cost and lead-times associated with tooling new housing every time a new configuration is needed.
Applications
- Data center
- Industrial
- Energy
- Medical
Technical specifications
| Anschluss | Crimpanschluss | |
| Anzahl der Reihen | 2 | |
| Ausführung | Buchsenleiste | |
| Farbe | schwarz | |
| Kontaktart | Buchse | |
| Orientierung | gerade | |
| Polzahl | 6-polig |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85389099 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
