2227303-3 | TE Connectivity

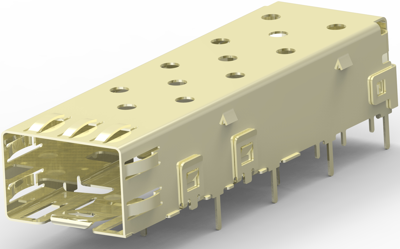

Cage assembly, angled, 2227303-3
Order No.: 37P2498
EAN: 4099889824339
MPN:
2227303-3
Unit Price (€ / pc.)
3.7485 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
3.75 € *
Price list
Quantity
Price per unit*
1 pcs.
3.7485 €
10 pcs.
3.4391 €
50 pcs.
3.0940 €
100 pcs.
2.7846 €
*incl. VAT plus shipping costs
**Subject to prior sale
SFP/SFP+/zSFP+, 2227303-3, TE Connectivity
Cage Type: Single, Pluggable I/O Product Type: Cage, Connector System: Cable-to-Board, Sealable: No, Connector & Contact Terminates To: Printed Circuit Board, Port Matrix Configuration: 1 x 1, Number of Ports: 1, Data Rate (Max): 4 Gb/s, Tail Plating Material: Tin, Termination Method to Printed Circuit Board: Through Hole - Solder, PCB Mounting Style: Through Hole - Solder, Connector Mounting Type: Board Mount, Cage Material: Stainless Steel, Tail Length: 1.8 mm, Operating Temperature Range: -55 – 85 °C, For Use With Pluggable I/O Products: SFP SMT Connector, Pluggable I/O Applications: zSFP+ Thermally Enhanced, Packaging Method: Box & Tray,Tray, EMI Containment Feature Type: External Springs, Included Lightpipe: No
Technical specifications
| Connection | Lötstift | |
| Number of rows | 1 | |
| Version | Cage-Baugruppe | |
| Additional parts | bestückt | |
| Orientation | abgewinkelt |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85389011 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
