2232043-5 | TE Connectivity

Pin header, 5 pole, pitch 5 mm, straight, natural, 2232043-5

Order No.: 35P4141
EAN: 4099889932775
MPN:
2232043-5
Series: RAST 5

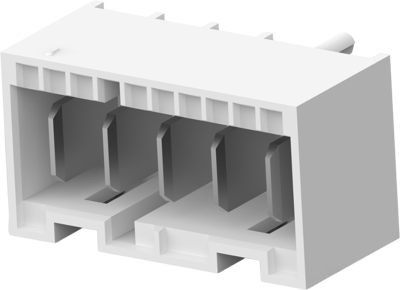

2232043-5 TE Connectivity PCB Connection Systems Image 1

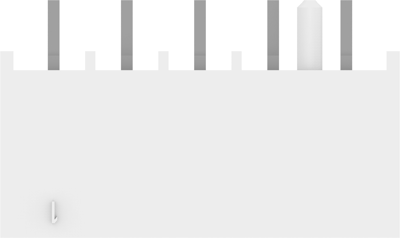

2232043-5 TE Connectivity PCB Connection Systems Image 2

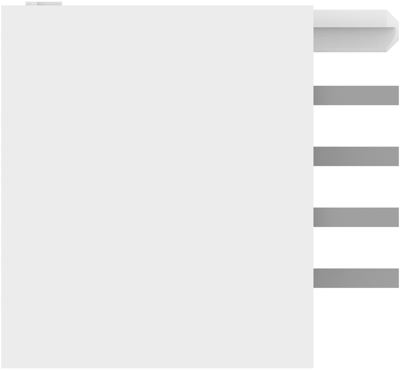

2232043-5 TE Connectivity PCB Connection Systems Image 3

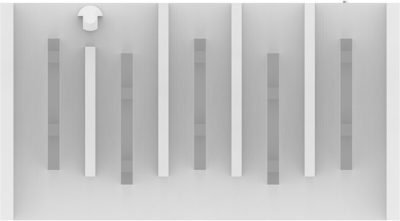

2232043-5 TE Connectivity PCB Connection Systems Image 4
2232043-5 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.8925 € *
Available: 0 pcs.
Leadtime: 22 Weeks **
Total Price:
2,142.00 € *
*incl. VAT plus shipping costs
**Subject to prior sale
2400 pcs.
0.8925 €

PCB Connection System, 2232043-5, TE Connectivity

Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 5 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Copper Alloy
  • Housing Material: Nylon
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 5
  • Operating Temperature Range: -40 – 120 °C [-40 – 248 °F]
  • Rated current: 16 A
  • Centerline (Pitch): 5 mm
  • Row-to-Row Spacing: 5 mm [0.197 in]
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Version Stiftleiste
Contact type Stift
Pin number 5-polig
Grid 5 mm
Connection Lötstift
Orientation gerade
Type of locking Ja
contact surface versilbert
Connection plating verzinnt
Rated voltage 250 V
Rated current 16 A
Additional parts bestückt
Number of rows 1
Breakable No
Colour natur
Logistics
Country of origin IN
Customs tariff number 85366910
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
