2296207-6 | TE Connectivity

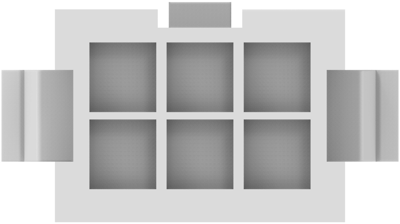

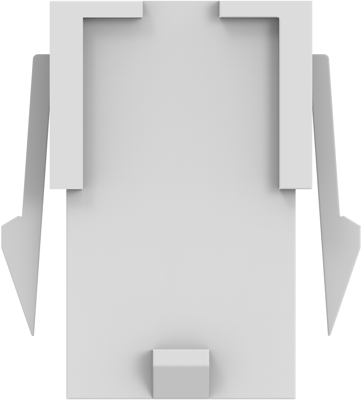

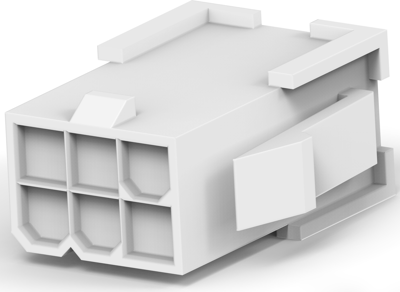

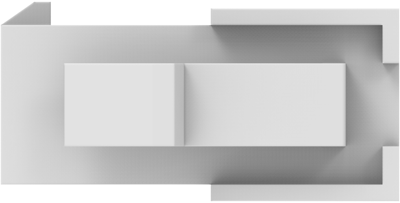

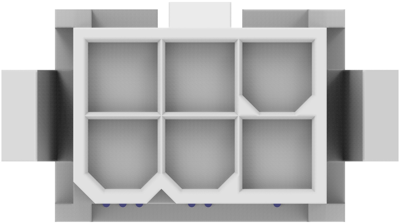

Socket header, 6 pole, pitch 4.2 mm, straight, white, 2296207-6
Order No.: 35P5555
EAN: 4099889939644
MPN:
2296207-6
Unit Price (€ / pc.)
0.2916 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
PCB Connection System, 2296207-6, TE Connectivity
Wire-to-Panel, Wire-to-Wire, Wire & Cable, 6 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging), Panel Mount
- Contact Type: Female
- Housing Material: Nylon
- Number of positions: 6
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Centerline (Pitch): 4.2 mm
- Row-to-Row Spacing: 4.2 mm [0.165 in]
- Sealable: No
Technical specifications
| Connection | Crimpanschluss | |
| Number of rows | 2 | |
| Version | Buchsenleiste | |
| Additional parts | unbestückt | |
| Breakable | No | |
| Colour | weiß | |
| Contact type | Buchse | |
| Orientation | gerade | |
| Pin number | 6-polig | |
| Grid | 4.2 mm | |
| Type of locking | Nein |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
