2298107-2 | TE Connectivity
Connector, straight, 2298107-2
Unit Price (€ / pc.)
0.3035 € *
Available: 0 pcs.
Available in 5 Days: 15,000 pcs.
Leadtime: 26 Weeks **
Total Price:
0.30 € *
Price list
Quantity
Price per unit*
3000 pcs.
0.3035 €
6000 pcs.
0.2868 €
*incl. VAT plus shipping costs
**Subject to prior sale

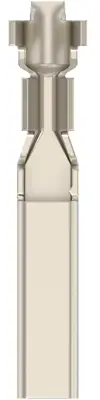

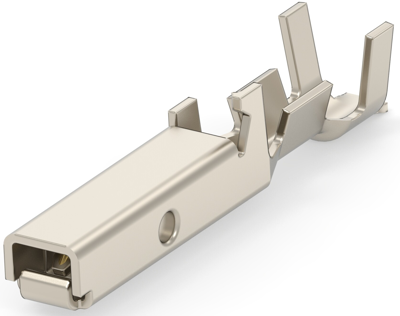

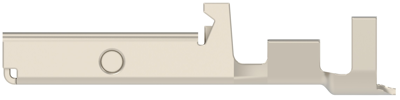

Receptacle contact, 2298107-2, TE Connectivity
Connector contact, Receptacle, Component-to-Wire, 24-20 AWG Wire size, 0.2-0.6 mm² Wire size, Gold, Reel & Box, Wire & Cable.
Applications
- Industrial Control
- Production Equipment
- Servo Drives
- Power Distribution
- Industrial Process Controls
- Numeric Controllers
Technical specifications
| Connection | crimp connection | |
| Version | connector | |
| Contact type | socket | |
| contact surface | gold-plated | |
| Rated voltage | 250 V | |
| Rated current | 15 A | |
| Orientation | straight |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
