2307815-4 | TE Connectivity
Socket header, 4 pole, pitch 2 mm, straight, black, 2307815-4
Unit Price (€ / pc.)
1.1543 € *
Available: 0 pcs.
Available in 5 Days: 9,000 pcs.
Leadtime: 19 Weeks **
Total Price:
1,038.87 € *
Price list
Quantity
Price per unit*
900 pcs.
1.1543 €
1800 pcs.
1.1305 €
*incl. VAT plus shipping costs
**Subject to prior sale

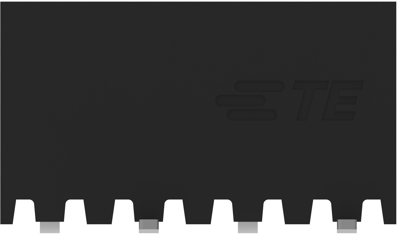

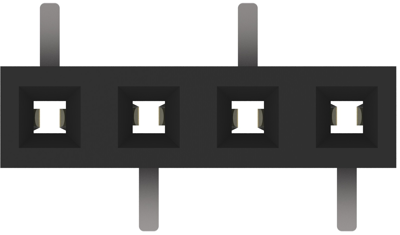

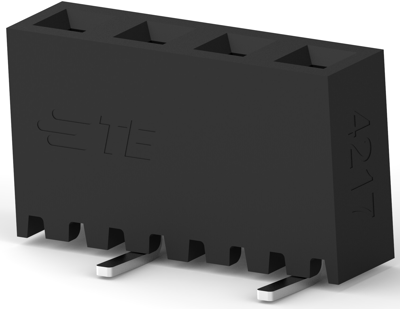

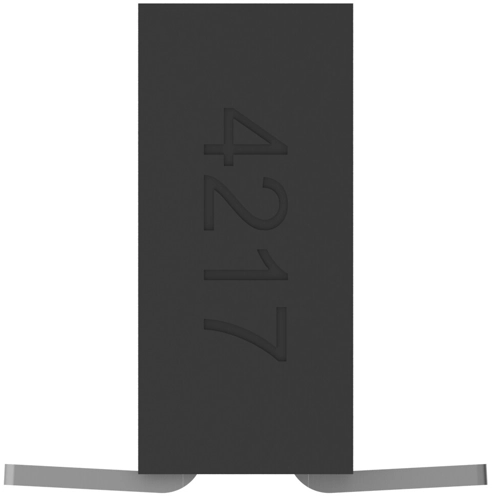

Socket header, 2307815-4, TE Connectivity
The 2307815-4 is a PCB Mount receptacle, housed in a high-temperature-resistant liquid crystal polymer (LCP) plastic. The receptacle assembly employ phosphor bronze contact with dual cantilever beams and built-in anti-overstress. This feature provides superior electrical performance as well as excellent solderability.
Applications
- Servo Drives
- Industrial Controls
- Material Handling
- Instrumentation and Test Equipment
- Building Automation
- PLC
Technical specifications
| Connection | SMD | |
| Connection plating | tin-plated | |
| Number of rows | 1 | |
| Version | socket header | |
| Additional parts | equipped | |
| Colour | black | |
| Contact type | socket | |
| contact surface | gold-plated | |
| Rated voltage | 125 V | |
| Rated current | 2 A | |
| Orientation | straight | |
| Pin number | 4 pole | |
| Grid | 2 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
