2307819-6 | TE Connectivity

Socket header, 6 pole, pitch 2 mm, straight, black, 2307819-6

Order No.: 71P6455
EAN: 4099891728083
MPN:
2307819-6
Series: RLP73

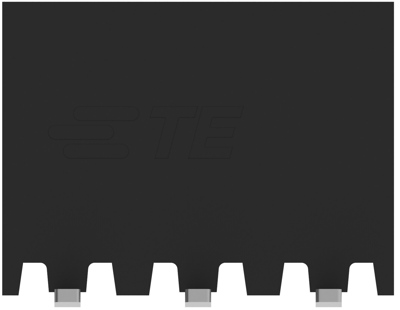

2307819-6 TE Connectivity PCB Connection Systems Image 1

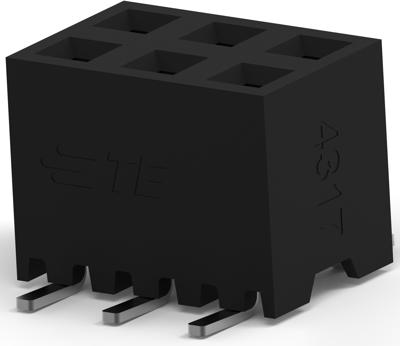

2307819-6 TE Connectivity PCB Connection Systems Image 2

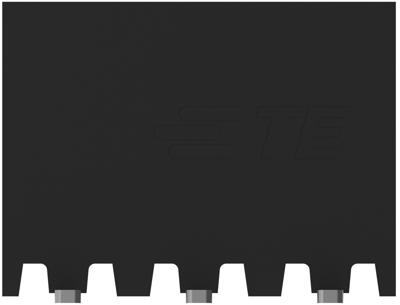

2307819-6 TE Connectivity PCB Connection Systems Image 3

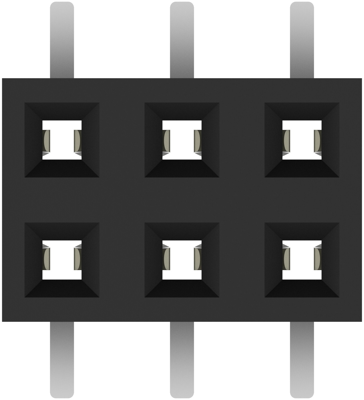

2307819-6 TE Connectivity PCB Connection Systems Image 4

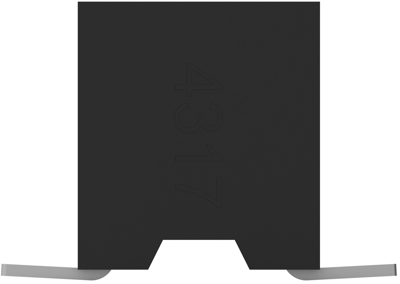

2307819-6 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.6303 € *
Available: 0 pcs.
Available in 5 Days: 2,800 pcs.
Leadtime: 19 Weeks **
Total Price:
1,141.21 € *
Price list
Quantity
Price per unit*
700 pcs.
1.6303 €
1400 pcs.
1.6065 €
*incl. VAT plus shipping costs
**Subject to prior sale

Socket header, 2307819-6, TE Connectivity

The 2307819-6 is a PCB Mount receptacle, housed in a high-temperature-resistant liquid crystal polymer (LCP) plastic. The receptacle assembly employ phosphor bronze contact with dual cantilever beams and built-in anti-overstress. This feature provides superior electrical performance as well as excellent solderability.

Applications

  • Servo Drives
  • Industrial Controls
  • Material Handling
  • Instrumentation and Test Equipment
  • Building Automation
  • PLC
Technical specifications
Connection SMD
Connection plating tin-plated
Number of rows 2
Version socket header
Additional parts equipped
Colour black
Contact type socket
contact surface gold-plated
Rated voltage 125 V
Rated current 2 A
Orientation straight
Pin number 6 pole
Grid 2 mm
Type of locking Yes
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
