2314820-6 | TE Connectivity

Socket header, 6 pole, pitch 2 mm, straight, black, 2314820-6

Order No.: 71P6486
EAN: 4099891728120
MPN:
2314820-6
Series: RLP73

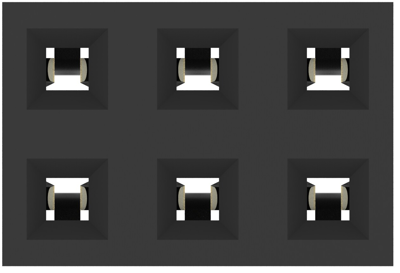

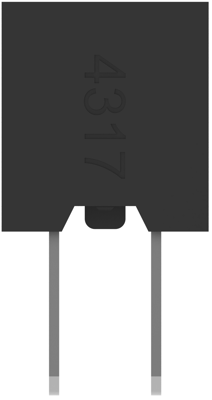

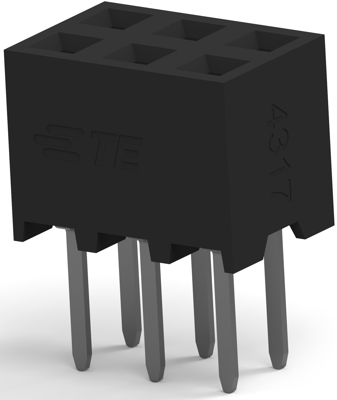

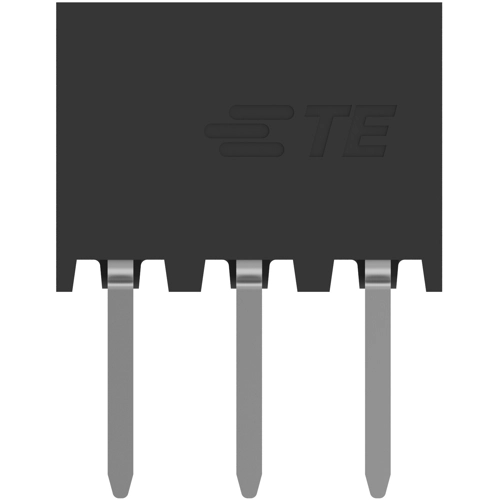

2314820-6 TE Connectivity PCB Connection Systems Image 1
2314820-6 TE Connectivity PCB Connection Systems Image 2
2314820-6 TE Connectivity PCB Connection Systems Image 3
2314820-6 TE Connectivity PCB Connection Systems Image 4
Image may differ
Unit Price (€ / pc.)
1.1900 € *
Available: 0 pcs.
Available in 5 Days: 4,230 pcs.
Leadtime: 19 Weeks **
Total Price:
1.19 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1900 €
10 pcs.
1.0710 €
50 pcs.
0.9639 €
100 pcs.
0.8687 €
*incl. VAT plus shipping costs
**Subject to prior sale

Socket header, 2314820-6, TE Connectivity

The 2314820-6 is a PCB Mount receptacle, housed in a high-temperature-resistant liquid crystal polymer (LCP) plastic. The receptacle assembly employ phosphor bronze contact with dual cantilever beams and built-in anti-overstress. This feature provides superior electrical performance as well as excellent solderability.

Applications

  • Servo Drives
  • Industrial Controls
  • Material Handling
  • Instrumentation and Test Equipment
  • Building Automation
  • PLC
Technical specifications
Anschluss Lötanschluss
Anschlussoberfläche verzinnt
Anzahl der Reihen 2
Ausführung Buchsenleiste
Bestückung bestückt
Farbe schwarz
Kontaktart Buchse
Kontaktoberfläche vergoldet
Nennspannung 125 V
Nennstrom 2 A
Orientierung gerade
Polzahl 6-polig
Rastermaß 2 mm
Verriegelung Ja
Logistics
Ursprungsland CN
Zolltarifnummer 85366930
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
