2314928-4 | TE Connectivity

Socket header, 4 pole, pitch 2 mm, angled, black, 2314928-4

Order No.: 71P6491
EAN: 4099891728144
MPN:
2314928-4
Series: RSS

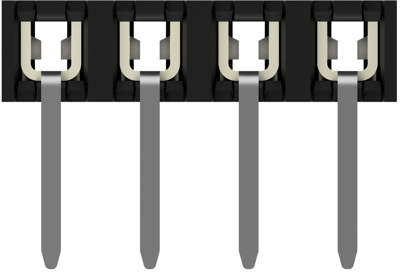

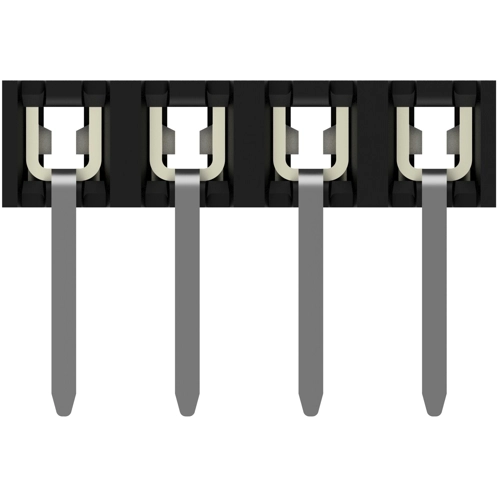

2314928-4 TE Connectivity PCB Connection Systems Image 1

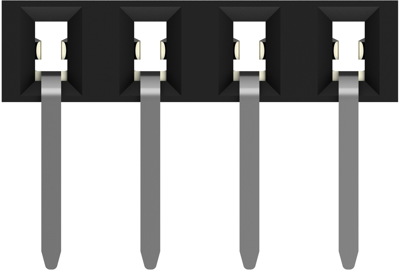

2314928-4 TE Connectivity PCB Connection Systems Image 2

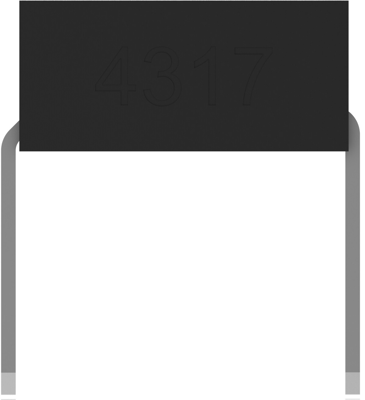

2314928-4 TE Connectivity PCB Connection Systems Image 3

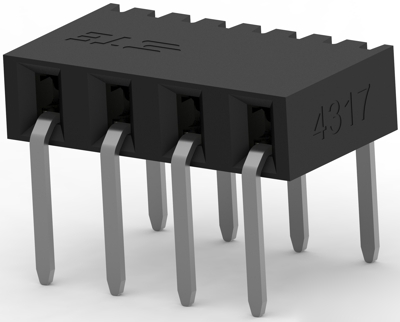

2314928-4 TE Connectivity PCB Connection Systems Image 4

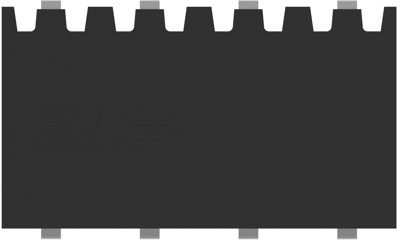

2314928-4 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.9163 € *
Available: 0 pcs.
Available in 5 Days: 3,240 pcs.
Leadtime: 19 Weeks **
Total Price:
0.92 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9163 €
10 pcs.
0.8330 €
50 pcs.
0.7497 €
100 pcs.
0.6664 €
*incl. VAT plus shipping costs
**Subject to prior sale

Socket header, 2314928-4, TE Connectivity

The 2314928-4 is a PCB Mount receptacle, housed in a high-temperature-resistant liquid crystal polymer (LCP) plastic. The receptacle assembly employ phosphor bronze contact with dual cantilever beams and built-in anti-overstress. This feature provides superior electrical performance as well as excellent solderability.

Applications

  • Servo Drives
  • Industrial Controls
  • Material Handling
  • Instrumentation and Test Equipment
  • Building Automation
  • PLC
Technical specifications
Connection Lötanschluss
Connection plating verzinnt
Number of rows 1
Version Buchsenleiste
Additional parts bestückt
Colour schwarz
Contact type Buchse
contact surface vergoldet
Rated voltage 125 V
Rated current 2 A
Orientation abgewinkelt
Pin number 4-polig
Grid 2 mm
Type of locking Ja
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
