2842102-4 | TE Connectivity

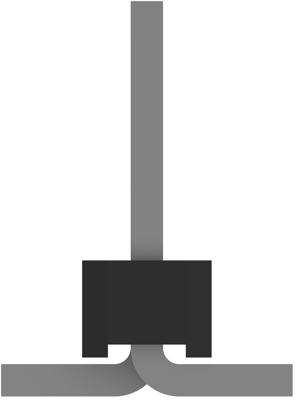

Pin header, 4 pole, pitch 2 mm, straight, black, 2842102-4
Unit Price (€ / pc.)
1.0710 € *
Available: 0 pcs.
Available in 5 Days: 5,600 pcs.
Leadtime: 20 Weeks **
Total Price:
749.70 € *
Price list
Quantity
Price per unit*
700 pcs.
1.0710 €
1400 pcs.
1.0115 €
*incl. VAT plus shipping costs
**Subject to prior sale
Pin header, 2842102-4, TE Connectivity
The 2842102-4 is a PCB Mount header, ideal for mobile and portable personal computers and disk drive applications.
Technical specifications
| Connection | SMD | |
| Connection plating | tin-plated | |
| Number of rows | 1 | |
| Version | pin header | |
| Additional parts | equipped | |
| Colour | black | |
| Contact type | pin | |
| contact surface | gold-plated | |
| Rated voltage | 125 V | |
| Rated current | 2 A | |
| Orientation | straight | |
| Pin number | 4 pole | |
| Grid | 2 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
