3-1971793-3 | TE Connectivity

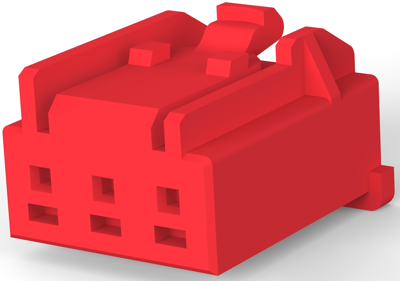

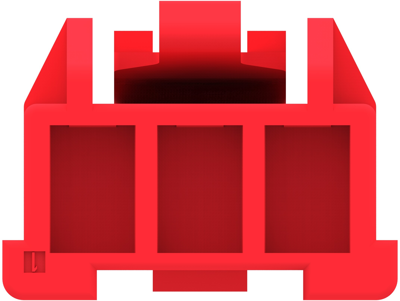

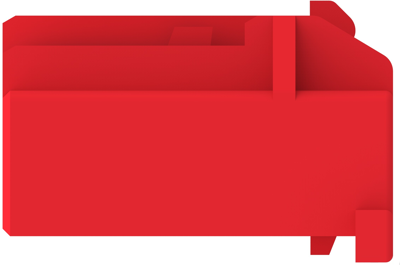

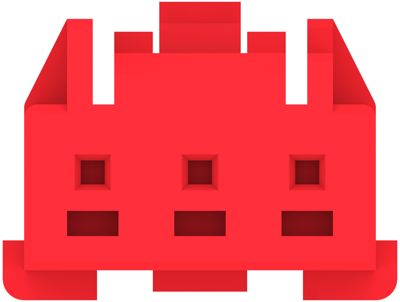

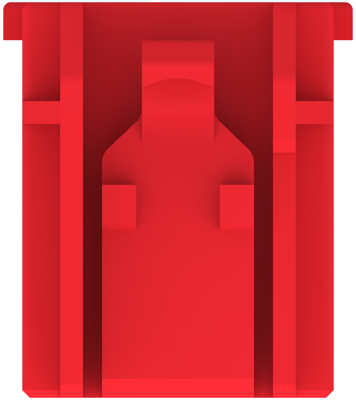

Plug housing, 3 pole, pitch 2.5 mm, straight, red, 3-1971793-3
Order No.: 34P8873
EAN: 4099889916881
MPN:
3-1971793-3
Unit Price (€ / pc.)
0.1059 € *
Available: 0 pcs.
Available in 5 Days: 7,048 pcs.
Leadtime: 11 Weeks **
Total Price:
0.11 € *
Price list
Quantity
Price per unit*
1200 pcs.
0.1059 €
6000 pcs.
0.0857 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 3-1971793-3, TE Connectivity
Wire-to-Wire, Wire & Cable, 3 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Tab
- Contact Base Material: Copper Alloy
- Housing Material: PA 66 GF
- Housing Color: red
- Number of positions: 3
- Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
- Rated current: 3 A
- Centerline (Pitch): 2.5 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
Connection | crimp connection | |
Number of rows | 1 | |
Version | plug housing | |
Additional parts | unequipped | |
Breakable | No | |
Colour | red | |
Contact type | socket | |
Rated voltage | 50 V | |
Rated current | 3 A | |
Orientation | straight | |
Pin number | 3 pole | |
Grid | 2.5 mm | |
Type of locking | Yes |
Download
Logistics
Country of origin | PL |
Customs tariff number | 85389091 |
Compliance
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
