3-1971845-2 | TE Connectivity

Pin header, 2 pole, pitch 5 mm, straight, natural, 3-1971845-2

Order No.: 35P4125
EAN: 4099889932638
MPN:
3-1971845-2
Series: RAST 5

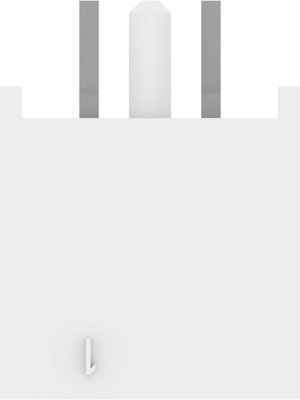

3-1971845-2 TE Connectivity PCB Connection Systems Image 1

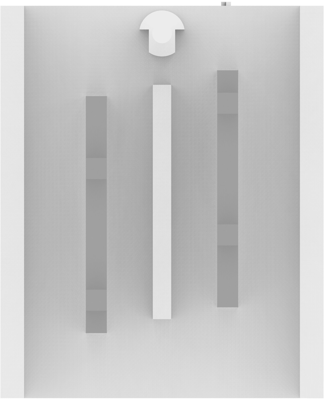

3-1971845-2 TE Connectivity PCB Connection Systems Image 2

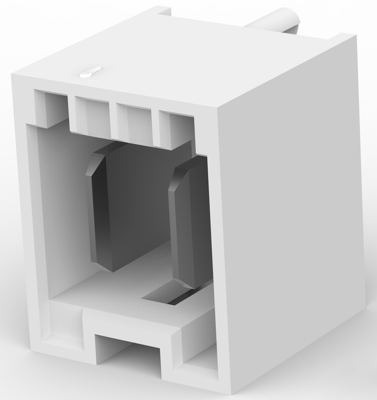

3-1971845-2 TE Connectivity PCB Connection Systems Image 3

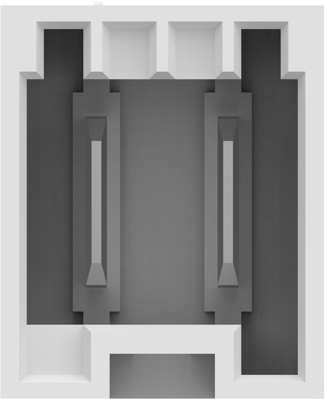

3-1971845-2 TE Connectivity PCB Connection Systems Image 4

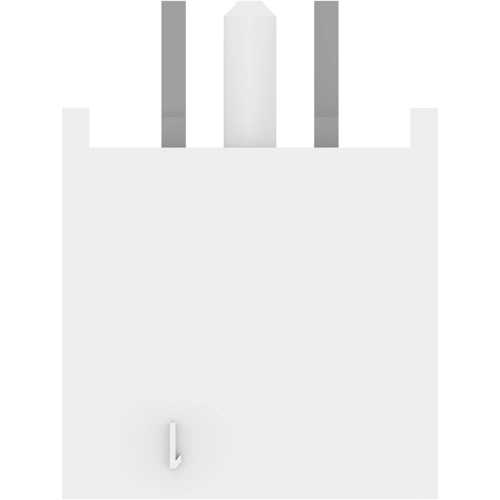

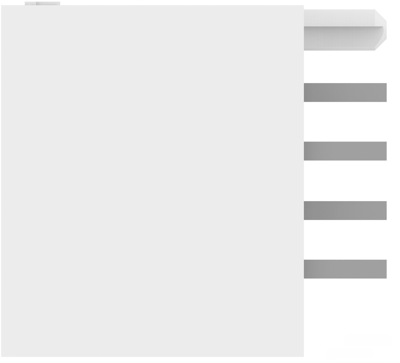

3-1971845-2 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.5712 € *
Available: 0 pcs.
Leadtime: 21 Weeks **
Total Price:
3,655.68 € *
*incl. VAT plus shipping costs
**Subject to prior sale
6400 pcs.
0.5712 €

PCB Connection System, 3-1971845-2, TE Connectivity

Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 2 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Tab
  • Contact Base Material: Copper Alloy
  • Housing Material: Nylon
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 2
  • Operating Temperature Range: -40 – 120 °C [-40 – 248 °F]
  • Rated current: 16 A
  • Centerline (Pitch): 5 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Version Stiftleiste
Contact type Tab
Pin number 2-polig
Grid 5 mm
Connection Lötstift
Orientation gerade
Type of locking Ja
contact surface verzinnt
Connection plating verzinnt
Rated voltage 250 V
Rated current 16 A
Additional parts bestückt
Number of rows 1
Breakable No
Colour natur
Logistics
Country of origin CH
Customs tariff number 85366910
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
