3-2106489-1 | TE Connectivity

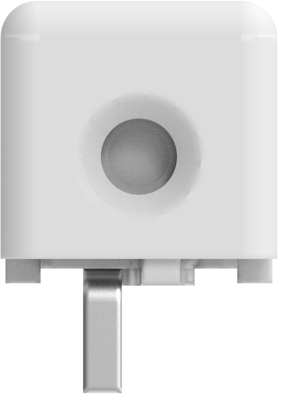

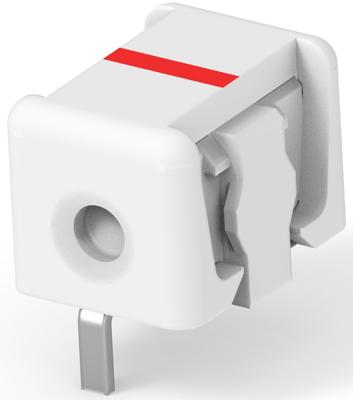

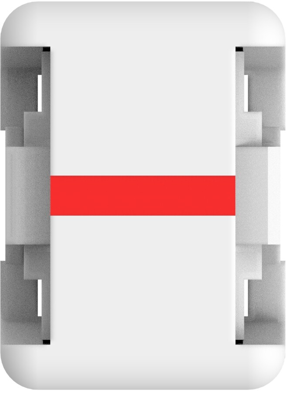

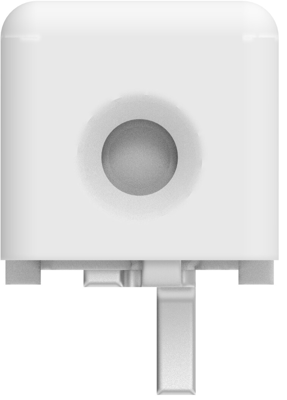

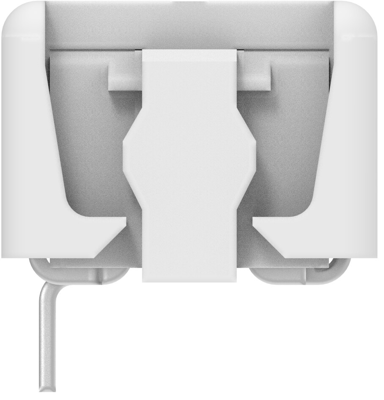

Connector, 1 pole, pitch 4 mm, straight, natural, 3-2106489-1
Order No.: 71P7766
EAN: 4099891730727
MPN:
3-2106489-1
Unit Price (€ / pc.)
0.7021 € *
Available: 0 pcs.
Available in 5 Days: 19,250 pcs.
Leadtime: 13 Weeks **
Total Price:
0.70 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7021 €
10 pcs.
0.6188 €
50 pcs.
0.5474 €
100 pcs.
0.4879 €
*incl. VAT plus shipping costs
**Subject to prior sale
Connector assembly, 3-2106489-1, TE Connectivity
The 3-2106489-1 is designed for quick, tool-less termination of discrete solid and stranded wire leads to metal clad boards used in LED applications and FR4 boards used in thru-hole non-LED lighting applications. Integral cover provides wire entry location and when fully seated wire leads are secured in dual IDC slots ensures electrical connections.
Features
- Insulation displacement eliminates the need to pre-strip wire insulation prior to “tool-less” termination
- Integral cover provides a robust, mechanical strain relieved connection in high vibration applications
- Wire placement viewing window and wire gauge color coded housings assist in error free assembly
Applications
- LED lighting
- HVAC controls
- Fire and Security controls
- Household Appliances
- Power Tools
Technical specifications
| Connection | Lötanschluss | |
| Number of rows | 1 | |
| Version | Steckverbinder | |
| Additional parts | bestückt | |
| Colour | natur | |
| contact surface | verzinnt | |
| Rated voltage | 400 V | |
| Rated current | 6 A | |
| Orientation | gerade | |
| Pin number | 1-polig | |
| Grid | 4 mm |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
