3-2299005-1 | TE Connectivity

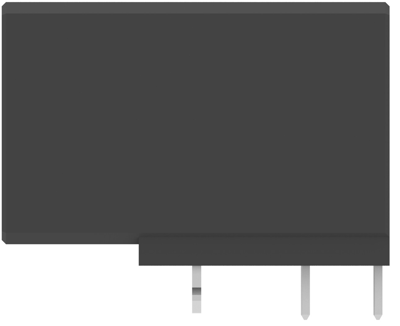

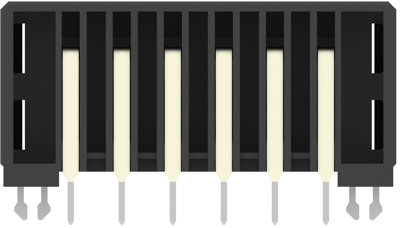

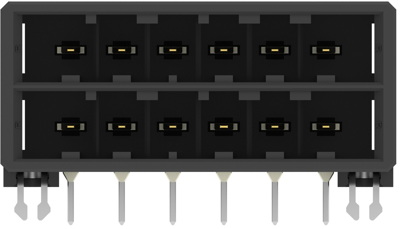

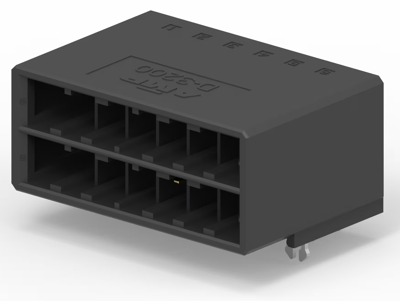

Pin header, 12 pole, pitch 5.08 mm, angled, black, 3-2299005-1
Unit Price (€ / pc.)
8.0563 € *
Available: 0 pcs.
Available in 5 Days: 2,337 pcs.
Leadtime: 40 Weeks **
Total Price:
386.70 € *
Price list
Quantity
Price per unit*
48 pcs.
8.0563 €
60 pcs.
7.8897 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Header, 3-2299005-1, TE Connectivity
PCB Mount header, Horizontal, Wire-to-Board, 12 Position, 5.08 mm Centerline, Fully shrouded, Gold, Through Hole-Solder.
Applications
- Industrial Control
- Production Equipment
- Servo Drives
- Power Distribution
- Industrial Process Controls
- Numeric Controllers
Technical specifications
| Connection | Lötanschluss | |
| Number of rows | 2 | |
| Version | Stiftleiste | |
| Additional parts | bestückt | |
| Colour | schwarz | |
| Contact type | Stift | |
| contact surface | vergoldet | |
| Rated voltage | 600 V | |
| Rated current | 15 A | |
| Orientation | abgewinkelt | |
| Pin number | 12-polig | |
| Grid | 5.08 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
