3-644754-3 | TE Connectivity

Pin header, 3 pole, pitch 3.96 mm, angled, natural, 3-644754-3

Order No.: 34P9983
EAN: 4099889921267
MPN:
3-644754-3
TE Connectivity

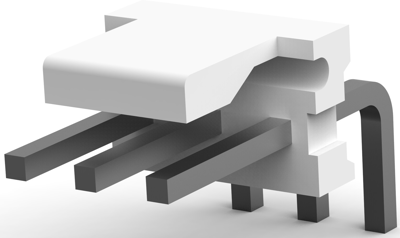

3-644754-3 TE Connectivity PCB Connection Systems Image 1

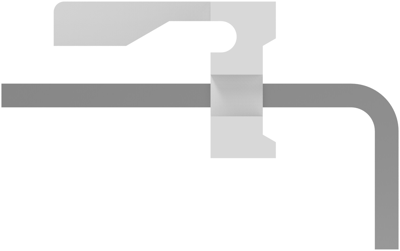

3-644754-3 TE Connectivity PCB Connection Systems Image 2

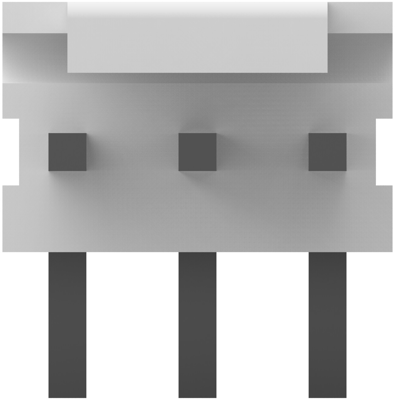

3-644754-3 TE Connectivity PCB Connection Systems Image 3

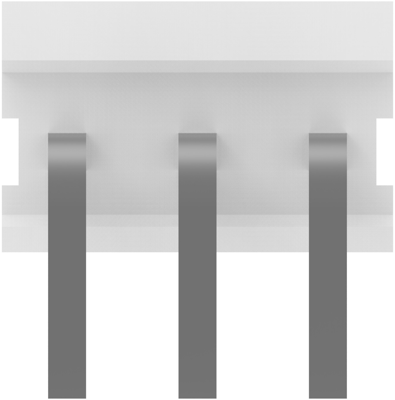

3-644754-3 TE Connectivity PCB Connection Systems Image 4

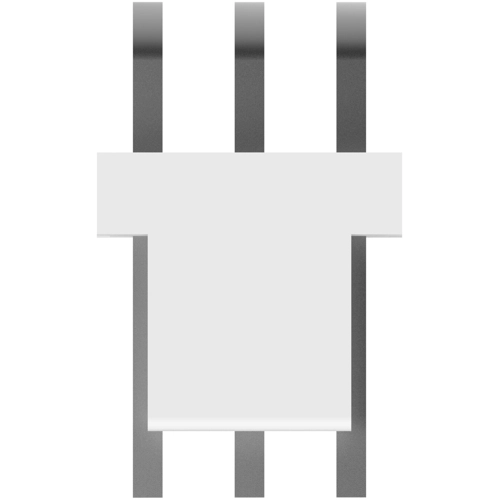

3-644754-3 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.8207 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1.82 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8207 €
10 pcs.
1.6660 €
50 pcs.
1.4994 €
100 pcs.
1.3447 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connection System, 3-644754-3, TE Connectivity

Wire-to-Board, Printed Circuit Board, Unshrouded, Right Angle,Vertical, 3 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Copper Alloy
  • Housing Material: Thermoplastic Polyester
  • Housing Color: natural
  • Number of positions: 3
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 7 A
  • Centerline (Pitch): 3.96 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Connection solder pin
Connection plating tin-plated
Number of rows 1
Version pin header
Additional parts equipped
Breakable No
Colour natural
Contact type pin
contact surface tin-plated
Rated voltage 600 V
Rated current 7 A
Orientation angled
Pin number 3 pole
Grid 3.96 mm
Type of locking Yes
Logistics
Country of origin GB
Customs tariff number 85366930
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
