4-1775099-0 | TE Connectivity

Pin header, 4 pole, pitch 4.2 mm, straight, ivory, 4-1775099-0

Order No.: 36P9844
EAN: 4099889950687
MPN:
4-1775099-0

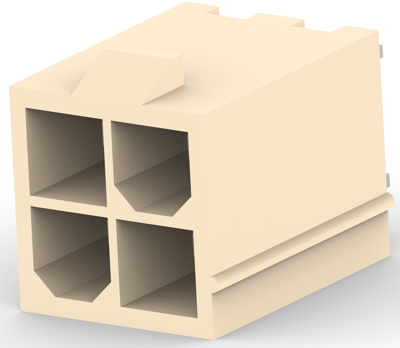

4-1775099-0 TE Connectivity PCB Connection Systems Image 1

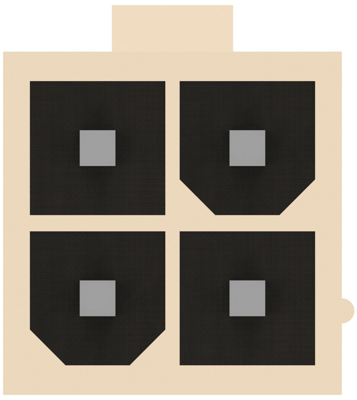

4-1775099-0 TE Connectivity PCB Connection Systems Image 2

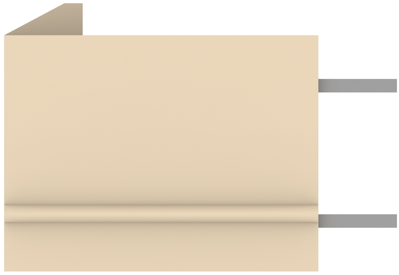

4-1775099-0 TE Connectivity PCB Connection Systems Image 3

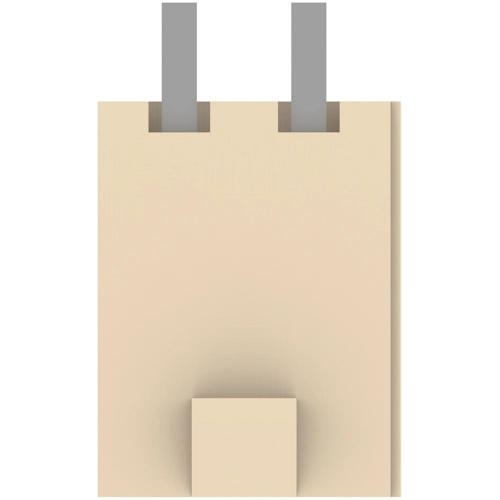

4-1775099-0 TE Connectivity PCB Connection Systems Image 4
4-1775099-0 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.1190 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Total Price:
571.20 € *
*incl. VAT plus shipping costs
**Subject to prior sale
4800 pcs.
0.1190 €

PCB Connection System, 4-1775099-0, TE Connectivity

Wire-to-Board, Printed Circuit Board, Vertical, 4 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Female
  • Housing Material: PA 6T
  • Orientation: straight
  • Number of positions: 4
  • Operating Temperature Range: -25 – 85 °C [-13 – 185 °F]
  • Rated current: 9 A
  • Centerline (Pitch): 4.2 mm
  • Row-to-Row Spacing: 4.2 mm [0.165 in]
  • PCB Mount Retention: Without
  • Sealable: No
Technical specifications
Version Stiftleiste
Contact type Buchse
Pin number 4-polig
Grid 4.2 mm
Connection Lötstift
Orientation gerade
Type of locking Ja
contact surface verzinnt
Connection plating verzinnt
Rated voltage 250 V
Rated current 9 A
Additional parts bestückt
Number of rows 2
Breakable No
Colour elfenbein
Logistics
Country of origin TH
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
