4-2295321-4 | TE Connectivity

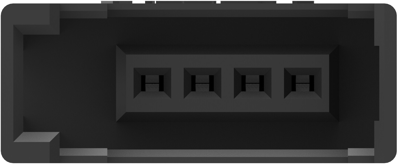

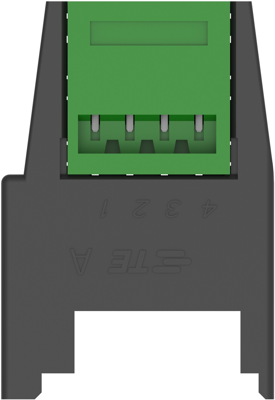

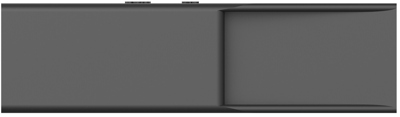

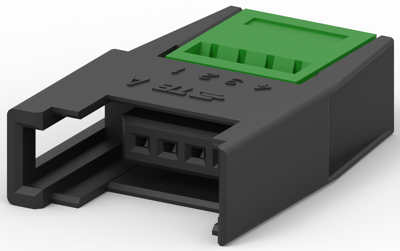

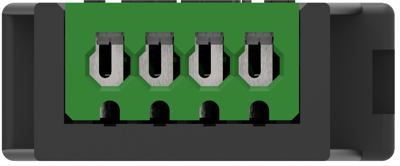

Socket header, 4 pole, pitch 2 mm, straight, green, 4-2295321-4
Order No.: 71P8944
EAN: 4099891733247
MPN:
4-2295321-4
Unit Price (€ / pc.)
3.1773 € *
Available: 0 pcs.
Available in 5 Days: 750 pcs.
Leadtime: 28 Weeks **
Total Price:
3.18 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1773 €
10 pcs.
2.9155 €
50 pcs.
2.6299 €
100 pcs.
2.3681 €
*incl. VAT plus shipping costs
**Subject to prior sale
Socket header, 4-2295321-4, TE Connectivity
Standard rectangular connector, Connector assembly, Receptacle, Mating alignment, Polarization mating alignment type, Mating retention, Crimp.
Technical specifications
| Connection | Crimpanschluss | |
| Connection plating | verzinnt | |
| Number of rows | 1 | |
| Version | Buchsenleiste | |
| Additional parts | unbestückt | |
| Colour | grün | |
| Contact type | Buchse | |
| contact surface | vergoldet | |
| Rated voltage | 32 V | |
| Rated current | 3 A | |
| Orientation | gerade | |
| Pin number | 4-polig | |
| Grid | 2 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
