5-1775443-3 | TE Connectivity

Pin header, 3 pole, pitch 1.5 mm, straight, natural, 5-1775443-3

Order No.: 36P9955
EAN: 4099889950885
MPN:
5-1775443-3

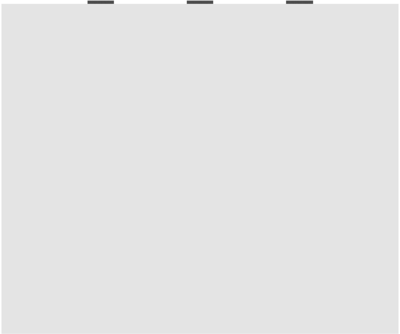

5-1775443-3 TE Connectivity PCB Connection Systems Image 1

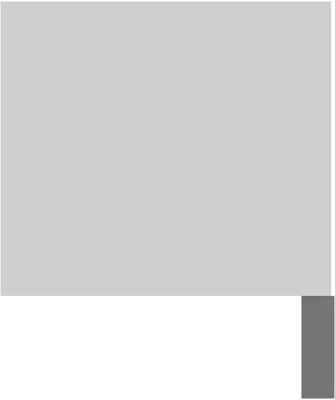

5-1775443-3 TE Connectivity PCB Connection Systems Image 2

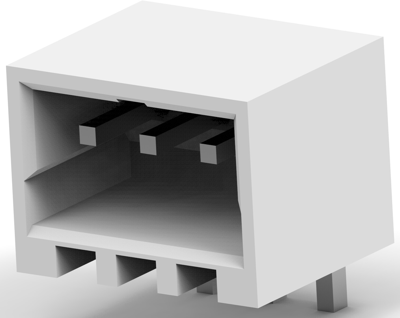

5-1775443-3 TE Connectivity PCB Connection Systems Image 3

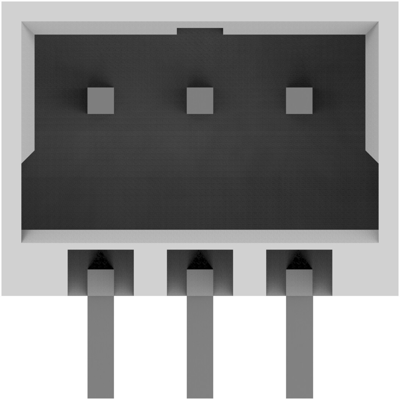

5-1775443-3 TE Connectivity PCB Connection Systems Image 4

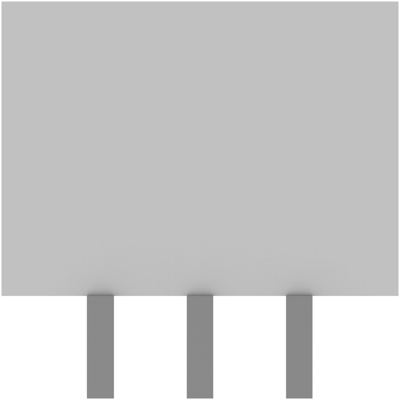

5-1775443-3 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.5712 € *
Available: 0 pcs.
Available in 5 Days: 2,223 pcs.
Leadtime: 11 Weeks **
Total Price:
0.57 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5712 €
10 pcs.
0.4998 €
50 pcs.
0.4522 €
100 pcs.
0.3927 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connection System, 5-1775443-3, TE Connectivity

Wire-to-Board, Printed Circuit Board, Partially Shrouded, Vertical, 3 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Brass
  • Housing Material: Thermoplastic
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 3
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 3 A
  • Centerline (Pitch): 1.5 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Anschluss SMD
Anschlussoberfläche verzinnt
Anzahl der Reihen 1
Ausführung Stiftleiste
Bestückung bestückt
Brechbar No
Farbe natur
Kontaktart Stift
Kontaktoberfläche verzinnt
Nennspannung 250 V
Nennstrom 3 A
Orientierung gerade
Polzahl 3-polig
Rastermaß 1.5 mm
Verriegelung Nein
Logistics
Ursprungsland TW
Zolltarifnummer 85366910
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
