5-1871057-6 | TE Connectivity

Socket housing, 32 pole, pitch 2 mm, straight, red, 5-1871057-6

Order No.: 71P9572
EAN: 4099891735654
MPN:
5-1871057-6
Series: Dynamic 1000

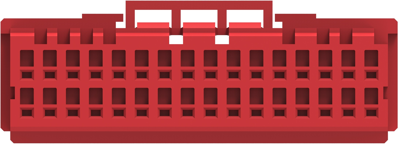

5-1871057-6 TE Connectivity PCB Connection Systems Image 1

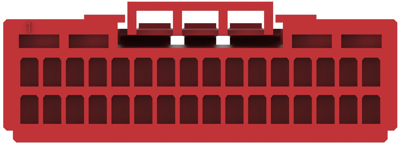

5-1871057-6 TE Connectivity PCB Connection Systems Image 2

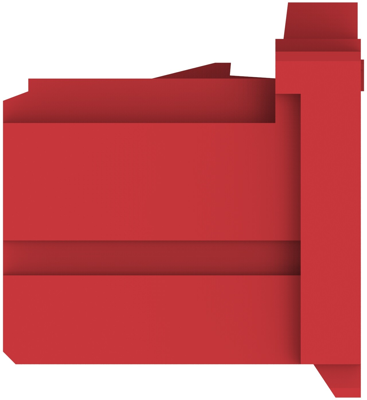

5-1871057-6 TE Connectivity PCB Connection Systems Image 3

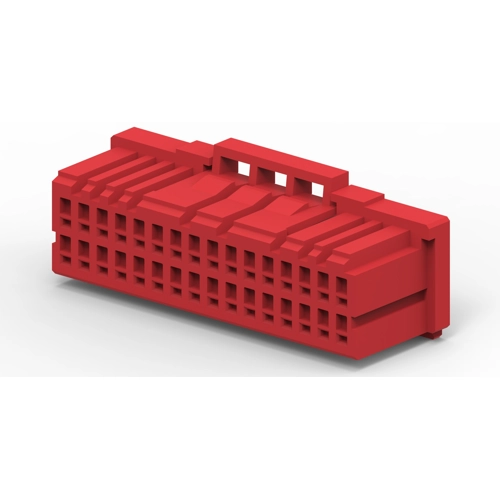

5-1871057-6 TE Connectivity PCB Connection Systems Image 4
Image may differ
Unit Price (€ / pc.)
1.6898 € *
Available: 0 pcs.
Available in 5 Days: 25,358 pcs.
Leadtime: 19 Weeks **
Total Price:
253.47 € *
Price list
Quantity
Price per unit*
150 pcs.
1.6898 €
300 pcs.
1.6660 €
*incl. VAT plus shipping costs
**Subject to prior sale

Receptacle housing, 5-1871057-6, TE Connectivity

Housing, Receptacle, Wire-to-Board, 32 Position, 2 mm Centerline, Crimp, 2 Row, Red, Mating retention, Wire & Cable.

Applications

  • Industrial Control
  • Production Equipment
  • Servo Drives
  • Power Distribution
  • Industrial Process Controls
  • Numeric Controllers
Technical specifications
Connection Crimpanschluss
Number of rows 2
Version Buchsengehäuse
Colour rot
Contact type Buchse
Rated voltage 125 V
Orientation gerade
Pin number 32-polig
Grid 2 mm
Type of locking Ja
Logistics
Country of origin CN
Customs tariff number 85389099
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
