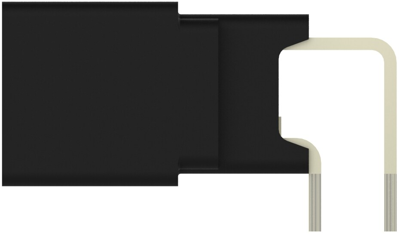

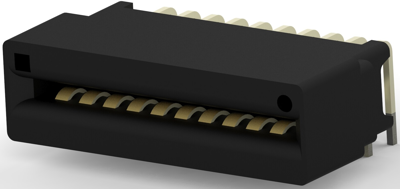

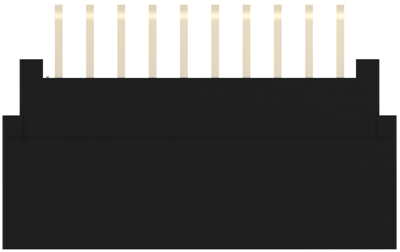

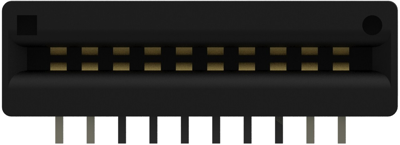

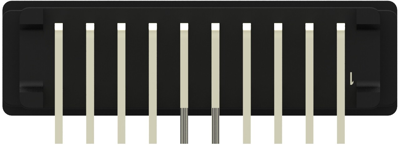

Card Edge Power Connectors, 5650118-2, TE Connectivity
Housing Type: Receptacle, Connector System: Board-to-Board, Contact Type: Socket, Connector & Contact Terminates To: Printed Circuit Board, PCB Mount Orientation: Right Angle, Number of Positions: 20, Number of Power Positions: 20, Number of Signal Positions: 0, Number of Dual Positions: 10, Operating Voltage: 400 VAC, Operating Voltage: 400 V, Contact Base Material: Phosphor Bronze, Contact Current Rating (Max): 3 A, Contact Mating Area Plating Material: Gold, Contact Termination Area Plating Material: Tin-Lead, Contact Termination Area Plating Thickness: 100 µin, Termination Post & Tail Length: 2.29 mm, Termination Method to Printed Circuit Board: Through Hole - Solder, PCB Mount Retention: Without, Connector Mounting Type: Board Mount, Mating Alignment: Without, Mating Retention: Without, End Caps: Without, Centerline (Pitch): 2.54 mm, Housing Color: Black, Housing Material: Polyester GF, Card Slot Depth: 7.56 mm, Power Contact Centerline: 2.54 mm, Height: 15.56 mm, Operating Temperature Range: -55 – 85 °C, Circuit Application: Power & Signal, UL Flammability Rating: UL 94V-0, Packaging Method: Tray, Packaging Quantity: 252, Position Locations Omitted: 0
