5787141-1 | TE Connectivity

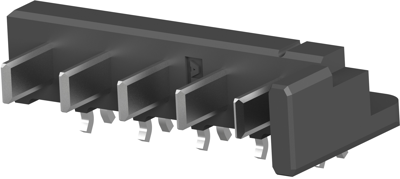

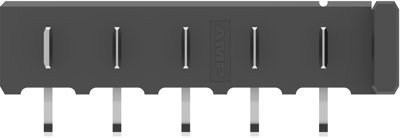

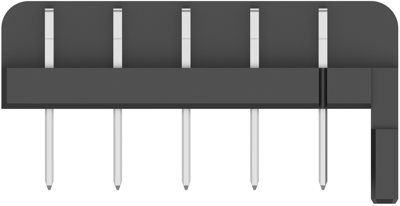

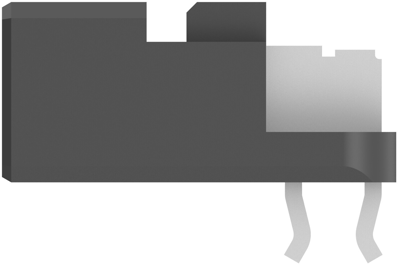

Pin header, 5 pole, pitch 5 mm, angled, black, 5787141-1
Order No.: 37P1572
EAN: 4099889953091
MPN:
5787141-1
Unit Price (€ / pc.)
6.0690 € *
Available: 0 pcs.
Available in 5 Days: 244 pcs.
Leadtime: 13 Weeks **
Total Price:
6.07 € *
Price list
Quantity
Price per unit*
15 pcs.
6.0690 €
90 pcs.
4.9028 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 5787141-1, TE Connectivity
Board-to-Board, Printed Circuit Board, Right Angle, 5 Position
Technical Data
- Connector Mounting Type: Board Mount
- Orientation: angled
- Number of positions: 5
- Operating Temperature Range: -30 – 70 °C [-22 – 158 °F]
- Rated current: 8.8 A
- Centerline (Pitch): 5 mm
- PCB Mount Retention: Without
- Sealable: No
Technical specifications
| Anschlussoberfläche | vergoldet | |
| Anzahl der Reihen | 1 | |
| Ausführung | Stiftleiste | |
| Bestückung | unbestückt | |
| Brechbar | No | |
| Farbe | schwarz | |
| Kontaktart | Stift | |
| Kontaktoberfläche | vergoldet | |
| Nennspannung | 50 V | |
| Nennstrom | 8.8 A | |
| Orientierung | abgewinkelt | |
| Polzahl | 5-polig | |
| Rastermaß | 5 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | GB |
| Zolltarifnummer | 85366910 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
