647676-7 | TE Connectivity

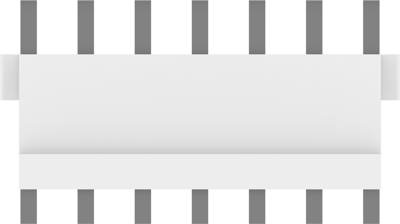

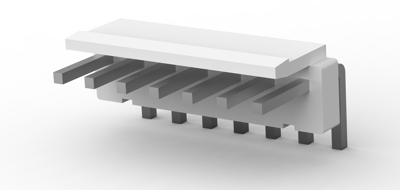

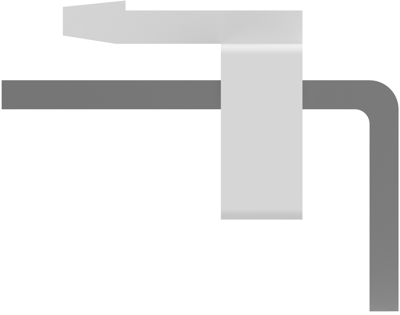

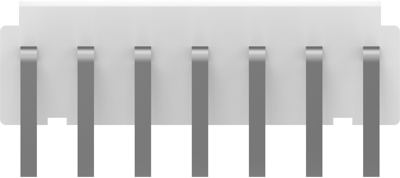

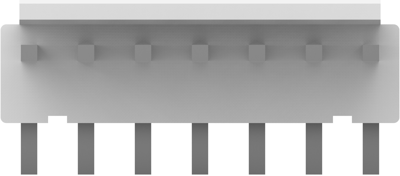

Pin header, 7 pole, pitch 3.96 mm, angled, white, 647676-7
Order No.: 34P7182
EAN: 4099889914160
MPN:
647676-7
Unit Price (€ / pc.)
0.5355 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
PCB Connection System, 647676-7, TE Connectivity
Wire-to-Board, Printed Circuit Board, Unshrouded, Right Angle, 7 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Base Material: Brass
- Housing Material: Nylon 66
- Housing Color: white
- Orientation: angled
- Number of positions: 7
- Operating Temperature Range: -25 – 105 °C [-13 – 221 °F]
- Rated current: 7.5 A
- Centerline (Pitch): 3.96 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Version | Stiftleiste | |
| Contact type | Stift | |
| Pin number | 7-polig | |
| Grid | 3.96 mm | |
| Connection | Lötstift | |
| Orientation | abgewinkelt | |
| Type of locking | Ja | |
| contact surface | verzinnt | |
| Connection plating | verzinnt | |
| Rated voltage | 250 V | |
| Rated current | 7.5 A | |
| Additional parts | bestückt | |
| Number of rows | 1 | |
| Breakable | No | |
| Colour | weiß |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
