794876-1 | TE Connectivity
Socket header, 2 pole, pitch 6.35 mm, straight, white, 794876-1
Unit Price (€ / pc.)
0.9520 € *
Available: 0 pcs.
Available in 5 Days: 1,685 pcs.
Leadtime: 23 Weeks **
Total Price:
0.95 € *
Price list
Quantity
Price per unit*
95 pcs.
0.9520 €
450 pcs.
0.8806 €
*incl. VAT plus shipping costs
**Subject to prior sale

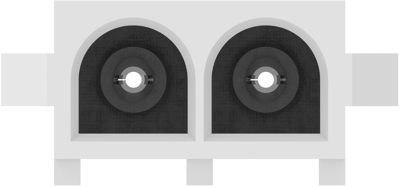

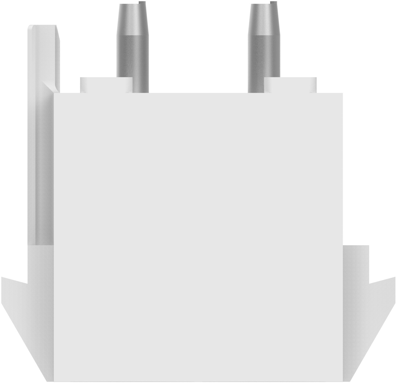

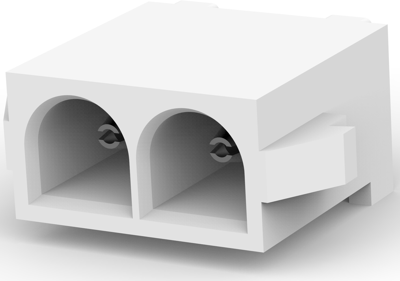

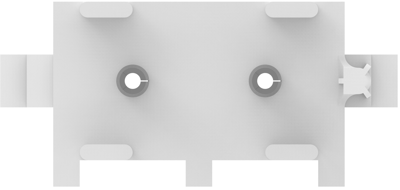

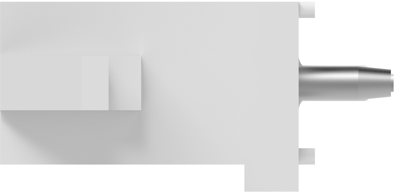

Socket header, 794876-1, TE Connectivity
Rectangular power connector, Header, Receptacle, Wire-to-Board, 2 Position, 6.35 mm centerline, Printed circuit board.
Technical specifications
| Connection | solder connection | |
| Connection plating | pre-tinned | |
| Number of rows | 1 | |
| Version | socket header | |
| Additional parts | equipped | |
| Colour | white | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 600 V | |
| Rated current | 12 A | |
| Orientation | straight | |
| Pin number | 2 pole | |
| Grid | 6.35 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
