9-1971845-5 | TE Connectivity

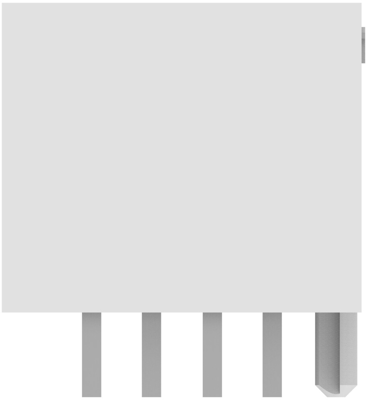

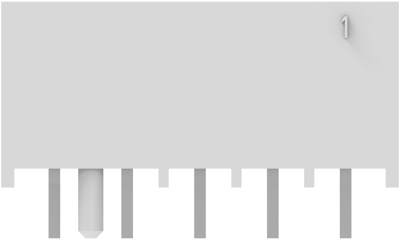

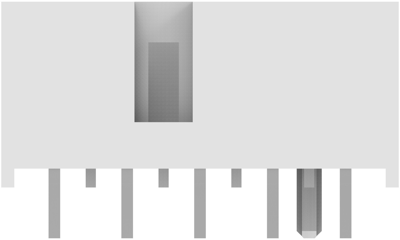

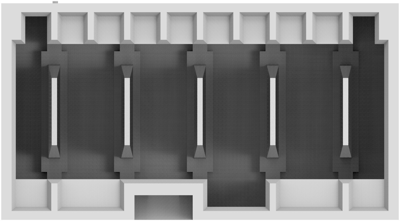

Pin header, 5 pole, pitch 5 mm, straight, natural, 9-1971845-5
Order No.: 35P4143
EAN: 4099889932799
MPN:
9-1971845-5
Unit Price (€ / pc.)
1.6541 € *
Available: 0 pcs.
Available in 5 Days: 545 pcs.
Leadtime: 23 Weeks **
Total Price:
1.65 € *
Price list
Quantity
Price per unit*
55 pcs.
1.6541 €
350 pcs.
1.3209 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 9-1971845-5, TE Connectivity
Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 5 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Copper Alloy
- Housing Material: Nylon
- Housing Color: natural
- Orientation: straight
- Number of positions: 5
- Operating Temperature Range: -40 – 120 °C [-40 – 248 °F]
- Rated current: 16 A
- Centerline (Pitch): 5 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Connection | PCB connection | |
| Connection plating | tin-plated | |
| Number of rows | 1 | |
| Version | pin header | |
| Additional parts | equipped | |
| Breakable | No | |
| Colour | natural | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 250 V | |
| Rated current | 16 A | |
| Orientation | straight | |
| Pin number | 5 pole | |
| Grid | 5 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
