9-1971846-3 | TE Connectivity

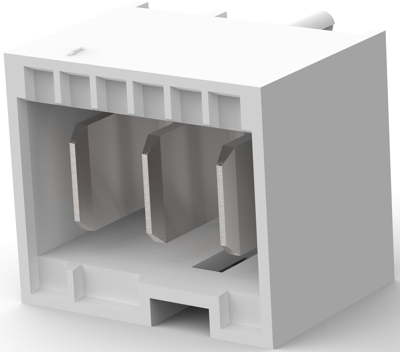

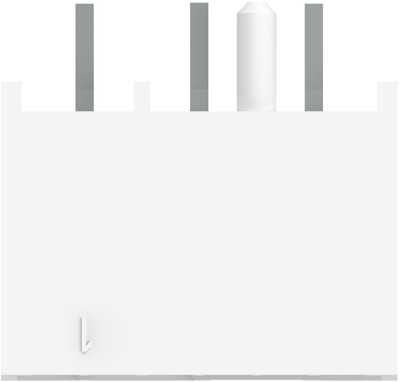

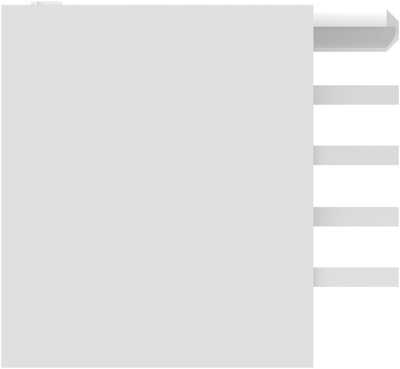

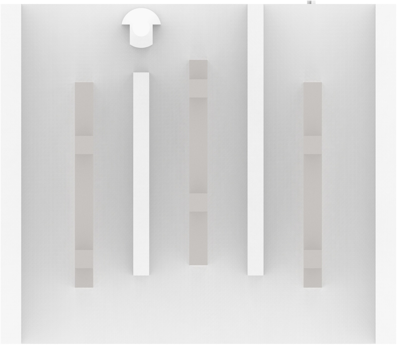

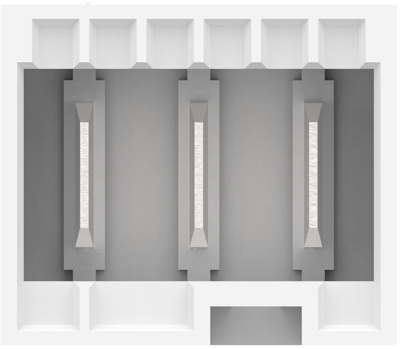

Pin header, 3 pole, pitch 5 mm, straight, natural, 9-1971846-3
Order No.: 35P4132
EAN: 4099889932690
MPN:
9-1971846-3
Unit Price (€ / pc.)
0.9877 € *
Available: 0 pcs.
Leadtime: 23 Weeks **
PCB Connection System, 9-1971846-3, TE Connectivity
Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 3 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Copper Alloy
- Housing Material: Nylon
- Housing Color: natural
- Orientation: straight
- Number of positions: 3
- Operating Temperature Range: -40 – 120 °C [-40 – 248 °F]
- Rated current: 20 A
- Centerline (Pitch): 5 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Connection | PCB connection | |
| Connection plating | silver-plated | |
| Number of rows | 1 | |
| Version | pin header | |
| Additional parts | equipped | |
| Breakable | No | |
| Colour | natural | |
| Contact type | pin | |
| contact surface | silver-plated | |
| Rated voltage | 250 V | |
| Rated current | 20 A | |
| Orientation | straight | |
| Pin number | 3 pole | |
| Grid | 5 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
