917728-1 | TE Connectivity

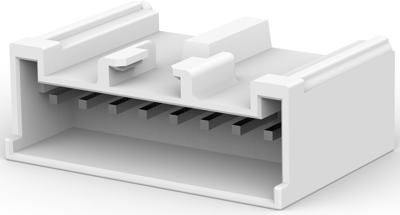

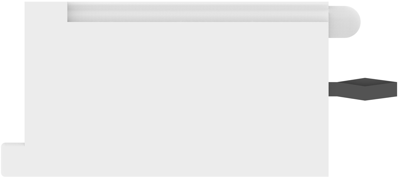

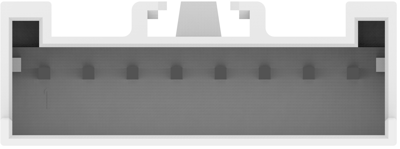

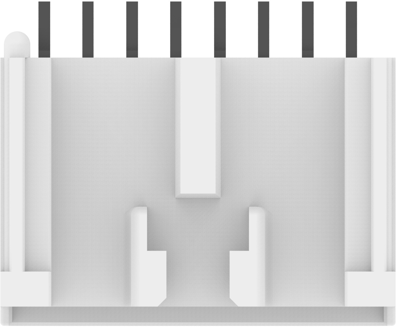

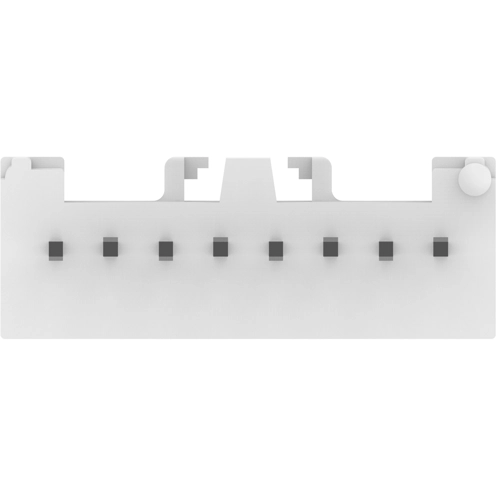

Pin header, 8 pole, pitch 2.5 mm, straight, natural, 917728-1
Order No.: 35P4335
EAN: 4099889933505
MPN:
917728-1
Unit Price (€ / pc.)
1.0591 € *
Available: 0 pcs.
Available in 5 Days: 167,399 pcs.
Leadtime: 22 Weeks **
Total Price:
1.06 € *
Price list
Quantity
Price per unit*
85 pcs.
1.0591 €
450 pcs.
0.9877 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 917728-1, TE Connectivity
Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 8 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Copper Alloy
- Housing Material: Nylon 6/6 GF
- Housing Color: natural
- Orientation: straight
- Number of positions: 8
- Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
- Rated current: 3 A
- Centerline (Pitch): 2.5 mm
- PCB Mount Retention: With
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Connection | solder pin | |
| Connection plating | tin-plated | |
| Number of rows | 1 | |
| Version | pin header | |
| Additional parts | equipped | |
| Breakable | No | |
| Colour | natural | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 250 V | |
| Rated current | 3 A | |
| Orientation | straight | |
| Pin number | 8 pole | |
| Grid | 2.5 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
