917786-1 | TE Connectivity

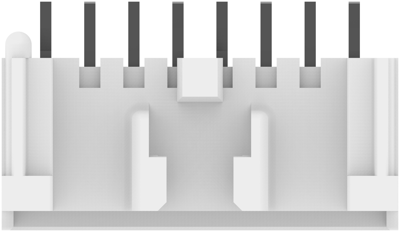

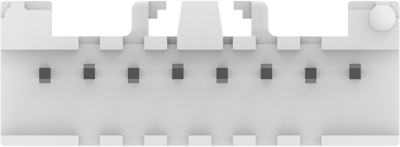

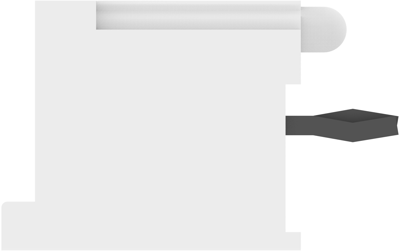

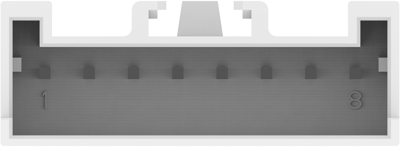

Pin header, 8 pole, pitch 2.5 mm, straight, natural, 917786-1
Order No.: 35P4327
EAN: 4099889933420
MPN:
917786-1
Unit Price (€ / pc.)
0.9163 € *
Available: 0 pcs.
Available in 5 Days: 129,330 pcs.
Leadtime: 22 Weeks **
Total Price:
0.92 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9163 €
10 pcs.
0.8330 €
50 pcs.
0.7497 €
100 pcs.
0.6664 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 917786-1, TE Connectivity
Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 8 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Copper Alloy
- Housing Material: Nylon 6/6 GF
- Housing Color: natural
- Orientation: straight
- Number of positions: 8
- Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
- Rated current: 3 A
- Centerline (Pitch): 2.5 mm
- PCB Mount Retention: With
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Version | Stiftleiste | |
| Contact type | Stift | |
| Pin number | 8-polig | |
| Grid | 2.5 mm | |
| Connection | Lötstift | |
| Orientation | gerade | |
| Type of locking | Ja | |
| contact surface | verzinnt | |
| Connection plating | verzinnt | |
| Rated voltage | 250 V | |
| Rated current | 3 A | |
| Additional parts | bestückt | |
| Number of rows | 1 | |
| Breakable | No | |
| Colour | natur |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
