926306-5 | TE Connectivity

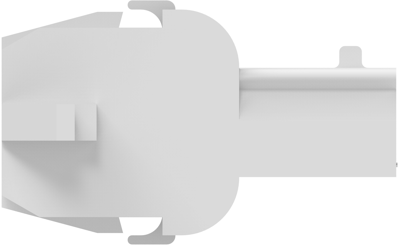

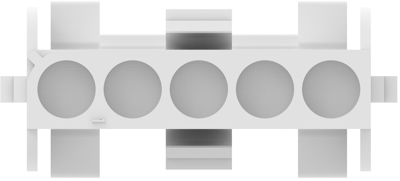

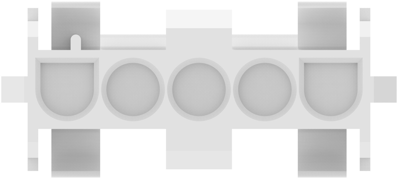

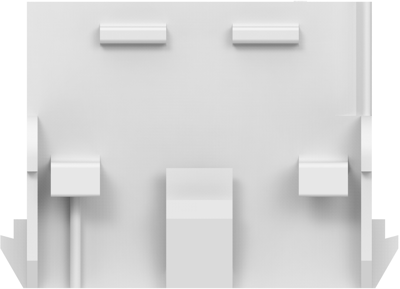

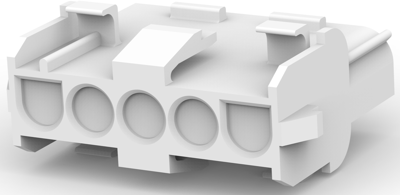

Socket housing, 5 pole, pitch 6.35 mm, straight, natural, 926306-5
Order No.: 35P5087
EAN: 4099889937121
MPN:
926306-5
Unit Price (€ / pc.)
0.7854 € *
Available: 0 pcs.
Leadtime: 26 Weeks **
PCB Connection System, 926306-5, TE Connectivity
Wire-to-Panel, Wire-to-Wire, Wire & Cable, 5 Position
Technical Data
- Connector Mounting Type: Panel Mount
- Contact Type: Male
- Housing Material: PA 6
- Housing Color: natural
- Number of positions: 5
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 6.35 mm
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Connection | crimp connection | |
| Number of rows | 1 | |
| Version | socket housing | |
| Additional parts | unequipped | |
| Breakable | No | |
| Colour | natural | |
| Contact type | pin | |
| Rated voltage | 600 V | |
| Orientation | straight | |
| Pin number | 5 pole | |
| Grid | 6.35 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
