1-1437649-7 | TE Connectivity
PCB terminal, 13 pole, AWG 22 to 12, 20 A, screw connection, black, 1-1437649-7
Unit Price (€ / pc.)
9.9722 € *
Available: 0 pcs.
Available in 5 Days: 2,297 pcs.
Leadtime: 26 Weeks **
Total Price:
9.97 € *
Price list
Quantity
Price per unit*
1 pcs.
9.9722 €
10 pcs.
9.1749 €
50 pcs.
8.2467 €
100 pcs.
7.4256 €
*incl. VAT plus shipping costs
**Subject to prior sale

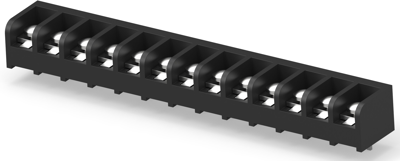

PCB terminal, 1-1437649-7, TE Connectivity
Barrier strip, Tri-Barrier, Printed circuit pin, Wire-to-Board, 13 Position, 8.26 mm Centerline, 1 Row, 150 V / 300 V.
Applications
- Machine control
- Power supplies
- Test & measurement
- Automation equipment
- Security/alarm devices
- Garage door openers
Technical specifications
| Anschluss | Schraubanschluss | |
| AWG-Leiterquerschnitt | AWG 22 bis 12 | |
| Breite | 15.24 mm | |
| Farbe | schwarz | |
| Höhe | 12.7 mm | |
| Leiterquerschnitt | 0,326-3,31 mm² | |
| Nennstrom | 20 A | |
| Polzahl | 13-polig |
Download
Logistics
| Ursprungsland | TW |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
