1-1437667-1 | TE Connectivity
PCB terminal, 5 pole, AWG 22 to 12, 20 A, screw connection, black, 1-1437667-1
Unit Price (€ / pc.)
2.3324 € *
Available: 0 pcs.
Available in 5 Days: 6,200 pcs.
Leadtime: 30 Weeks **
Total Price:
2.33 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3324 €
10 pcs.
2.1182 €
50 pcs.
1.9040 €
100 pcs.
1.7136 €
*incl. VAT plus shipping costs
**Subject to prior sale

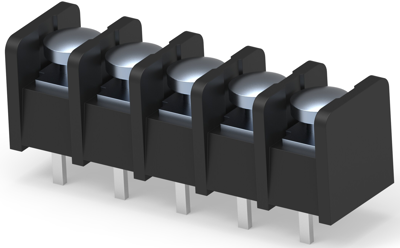

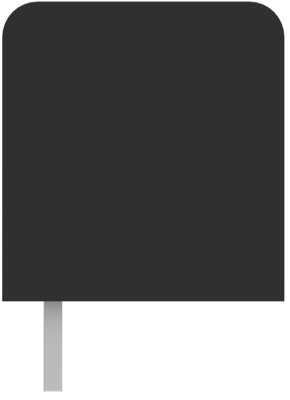

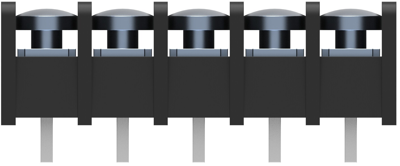

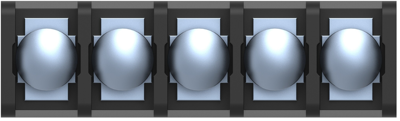

PCB terminal, 1-1437667-1, TE Connectivity
Barrier strip, Dual barrier, Printed circuit pin, Wire-to-Board, 5 Position, 8.26 mm Centerline, 1 Row, 300 V / 150 V.
Applications
- Machine control
- Power supplies
- Test & measurement
- Automation equipment
- Security/alarm devices
- Garage door openers
Technical specifications
| Connection | Schraubanschluss | |
| AWG cross-section | AWG 22 bis 12 | |
| Width | 12.7 mm | |
| Colour | schwarz | |
| Height | 13.46 mm | |
| Cable cross-section | 0,3-3,0 mm² | |
| Rated current | 20 A | |
| Pin number | 5-polig |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
