1-1986713-0 | TE Connectivity
PCB terminal, 10 pole, pitch 15 mm, AWG 20-1, 130 A, screw connection, green, 1-1986713-0
Order No.: 71P1137
EAN: 4099891626464
MPN:
1-1986713-0
Unit Price (€ / pc.)
167.3378 € *
Available: 0 pcs.
Available in 5 Days: 40 pcs.
Leadtime: 11 Weeks **
Total Price:
334.68 € *
Price list
Quantity
Price per unit*
2 pcs.
167.3378 €
3 pcs.
164.4580 €
*incl. VAT plus shipping costs
**Subject to prior sale

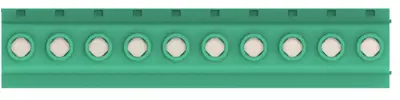

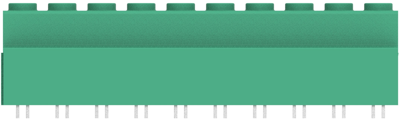

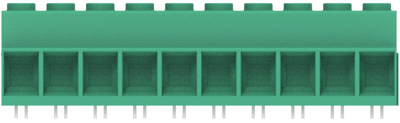

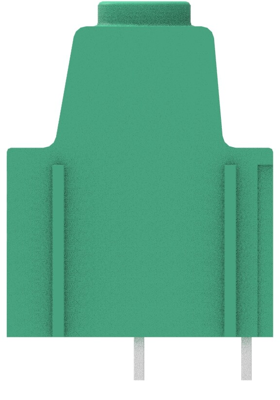

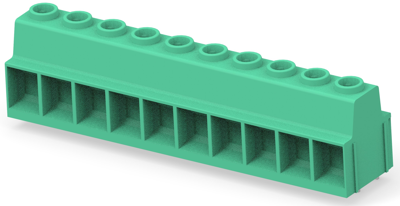

PCB Terminal, 1-1986713-0, TE Connectivity
PCB Terminal block, Header, Wire-to-Component, 10 Position, 15 mm Centerline, 2 Row, Side wire entry angle, 20-1 AWG Wire size.
Technical specifications
| Connection | Schraubanschluss | |
| AWG cross-section | AWG 20-1 | |
| Width | 31 mm | |
| Colour | grün | |
| Height | 39 mm | |
| Contact distance | RM 3,8/12,5 | |
| Cable cross-section | 0,5-41 mm² | |
| Rated voltage | 600 V | |
| Rated current | 130 A | |
| Pin number | 10-polig | |
| Grid | 15 mm |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
