1-1986713-2 | TE Connectivity

PCB terminal, 12 pole, pitch 15 mm, AWG 20-1, 130 A, screw connection, green, 1-1986713-2

Order No.: 71P1139
EAN: 4099891626471
MPN:
1-1986713-2
TE Connectivity

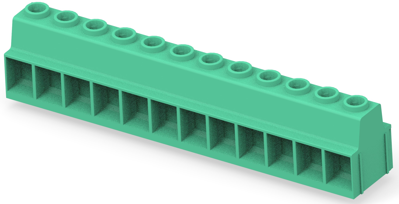

1-1986713-2 TE Connectivity PCB Terminal Blocks Image 1

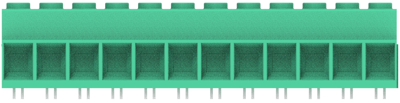

1-1986713-2 TE Connectivity PCB Terminal Blocks Image 2

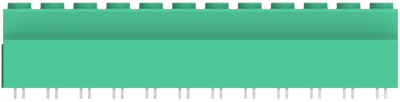

1-1986713-2 TE Connectivity PCB Terminal Blocks Image 3

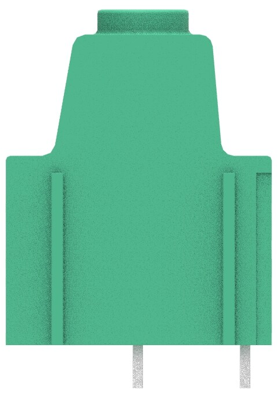

1-1986713-2 TE Connectivity PCB Terminal Blocks Image 4
1-1986713-2 TE Connectivity PCB Terminal Blocks Image 5
Image may differ
Print
Key Specification:
Pin number 12 pole
Grid 15 mm
Cable cross-section 0.5-41 mm²
AWG cross-section AWG 20-1
Contact distance RM 3.8/12.5

Ordering Information:

not to be sold to private customers
Download Datasheet Technical specifications

As a private customer, you can buy this item as soon as we have it back in stock.

Description
Technical specifications
Download
Logistics
Compliance

PCB Terminal, 1-1986713-2, TE Connectivity

PCB Terminal block, Header, Wire-to-Component, 12 Position, 15 mm Centerline, 2 Row, Side wire entry angle, 20-1 AWG Wire size.
Technical specifications
Connection screw connection
AWG cross-section AWG 20-1
Width 31 mm
Colour green
Height 39 mm
Contact distance RM 3.8/12.5
Cable cross-section 0.5-41 mm²
Rated voltage 600 V
Rated current 130 A
Pin number 12 pole
Grid 15 mm
Show similar products 0
Logistics
Country of origin IT
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
