1-2350397-6 | TE Connectivity

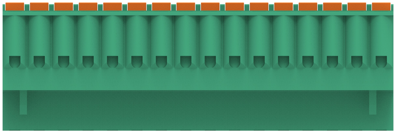

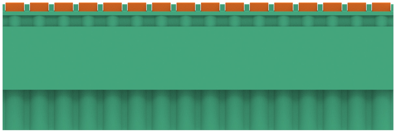

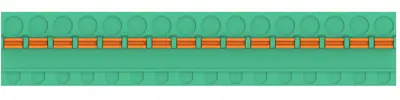

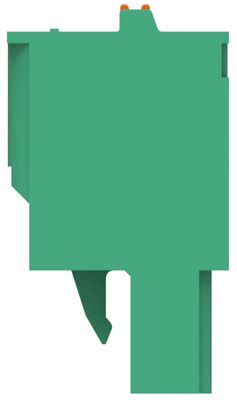

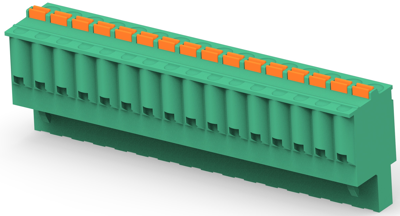

PCB terminal, 16 pole, pitch 5 mm, AWG 26-12, 10 A, push-in spring connection, green, 1-2350397-6
Order No.: 71P1677
EAN: 4099891626952
MPN:
1-2350397-6
Unit Price (€ / pc.)
7.3185 € *
Available: 0 pcs.
Available in 5 Days: 3,420 pcs.
Leadtime: 26 Weeks **
Total Price:
7.32 € *
Price list
Quantity
Price per unit*
95 pcs.
7.3185 €
190 pcs.
6.8901 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Terminal, 1-2350397-6, TE Connectivity
The 1-2350397-6 enables tool-less wire insertion of ferruled and unferruled wires. This saves up to 80% installation labor time vs. Traditional screw-clamp termination, leading to important cost savings.
Features
- Push-in clamp termination
Applications
- Servo/Inverter drives
- Industrial controls/PLC
- Safety controls/Modules
- Power supply units
- HVAC
Technical specifications
| Connection | push-in spring connection | |
| AWG cross-section | AWG 26-12 | |
| Width | 15 mm | |
| Colour | green | |
| Height | 24.4 mm | |
| Cable cross-section | 0.13-3.31 mm² | |
| Rated voltage | 300 V | |
| Rated current | 10 A | |
| Pin number | 16 pole | |
| Grid | 5 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
