1-282812-0 | TE Connectivity
PCB terminal, 10 pole, pitch 5 mm, 15 A, pin, green, 1-282812-0
Order No.: 71P1748
EAN: 4099891626976
MPN:
1-282812-0
Unit Price (€ / pc.)
4.2126 € *
Available: 0 pcs.
Available in 5 Days: 448 pcs.
Leadtime: 12 Weeks **
Total Price:
4.21 € *
Price list
Quantity
Price per unit*
1 pcs.
4.2126 €
10 pcs.
3.8794 €
50 pcs.
3.4867 €
100 pcs.
3.1416 €
*incl. VAT plus shipping costs
**Subject to prior sale

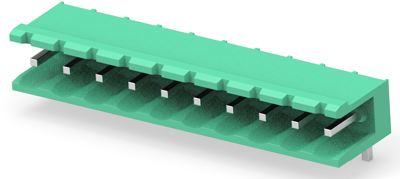

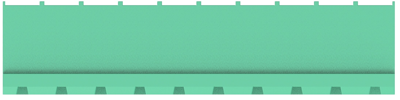

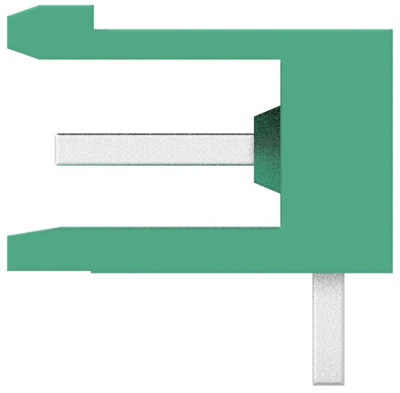

PCB Terminal, 1-282812-0, TE Connectivity
The 1-282812-0 provides a full range of two piece modular terminal block for headers. This product has funnel entry plug housing for easier wire insertion.
Features
- Built-in interlocks to assemble higher number of ways
- Polarization keys for easier mating
- Captive screw
Technical specifications
| Connection | Stift | |
| Width | 12 mm | |
| Colour | grün | |
| Height | 8.35 mm | |
| Rated voltage | 300 V | |
| Rated current | 15 A | |
| Pin number | 10-polig | |
| Grid | 5 mm |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
