1-282812-2 | TE Connectivity
PCB terminal, 12 pole, pitch 5 mm, 15 A, pin, green, 1-282812-2
Order No.: 71P1749
EAN: 4099891626983
MPN:
1-282812-2
Unit Price (€ / pc.)
4.0460 € *
Available: 0 pcs.
Available in 5 Days: 764 pcs.
Leadtime: 20 Weeks **
Total Price:
4.05 € *
Price list
Quantity
Price per unit*
25 pcs.
4.0460 €
150 pcs.
3.7961 €
*incl. VAT plus shipping costs
**Subject to prior sale

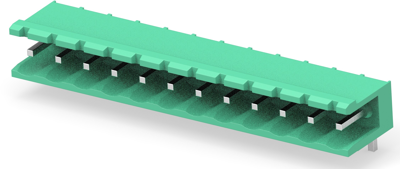

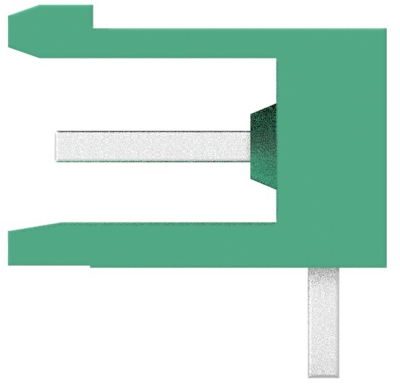

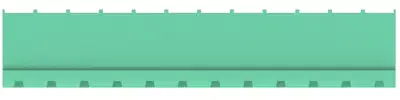

PCB Terminal, 1-282812-2, TE Connectivity
The 1-282812-2 provides a full range of two piece modular terminal block for headers. This product has funnel entry plug housing for easier wire insertion.
Features
- Built-in interlocks to assemble higher number of ways
- Polarization keys for easier mating
- Captive screw
Technical specifications
| Connection | pin | |
| Width | 12 mm | |
| Colour | green | |
| Height | 8.35 mm | |
| Rated voltage | 300 V | |
| Rated current | 15 A | |
| Pin number | 12 pole | |
| Grid | 5 mm |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
