1-282856-2 | TE Connectivity

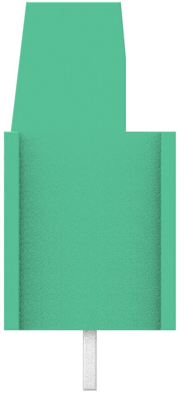

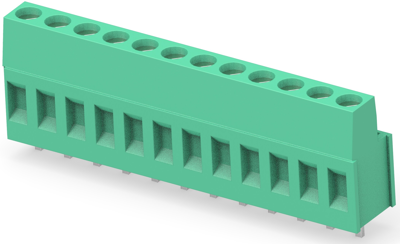

PCB terminal, 12 pole, pitch 5 mm, AWG 30-12, 24 A, cage clamp, green, 1-282856-2
Order No.: 71P1765
EAN: 4099891627102
MPN:
1-282856-2
Unit Price (€ / pc.)
9.8175 € *
Available: 0 pcs.
Available in 5 Days: 1,784 pcs.
Leadtime: 20 Weeks **
Total Price:
9.82 € *
Price list
Quantity
Price per unit*
1 pcs.
9.8175 €
10 pcs.
9.0321 €
50 pcs.
8.1277 €
100 pcs.
7.3185 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Terminal, 1-282856-2, TE Connectivity
The 1-282856-2 has a rising cage clamp which promotes numerous reliable connections and disconnections at field installations. This product is interchangeable with pc board footprint is fully compatible with existing Industry Standards.
Technical specifications
| Connection | Käfigklemme | |
| AWG cross-section | AWG 30-12 | |
| Width | 19 mm | |
| Colour | grün | |
| Height | 10 mm | |
| Cable cross-section | 0,05-3 mm² | |
| Rated voltage | 300 V | |
| Rated current | 24 A | |
| Pin number | 12-polig | |
| Grid | 5 mm |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
