1-2834017-3 | TE Connectivity

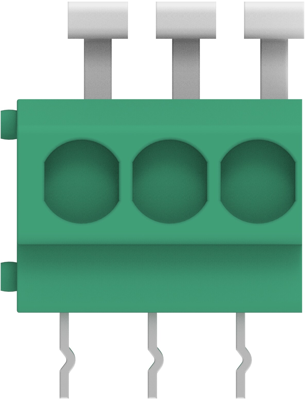

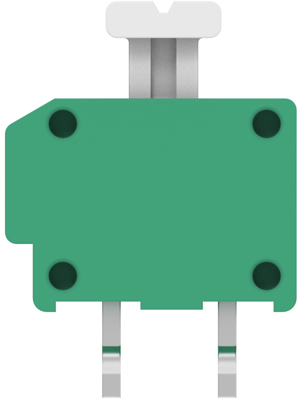

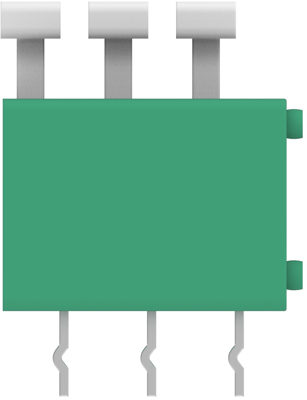

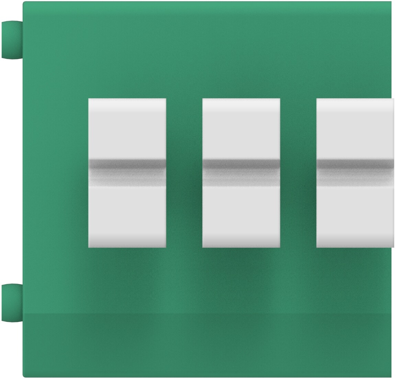

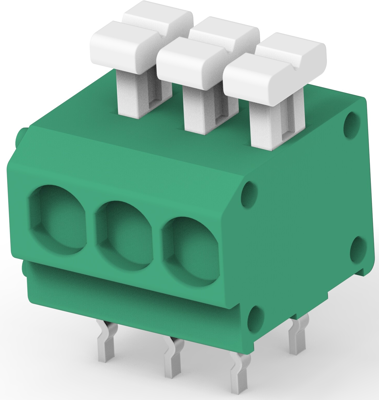

PCB terminal, 3 pole, pitch 3.81 mm, AWG 20-16, 8 A, push-in, green, 1-2834017-3
Order No.: 71P1771
EAN: 4099891627140
MPN:
1-2834017-3
Unit Price (€ / pc.)
0.8092 € *
Available: 0 pcs.
Available in 5 Days: 1,967 pcs.
Leadtime: 21 Weeks **
Total Price:
0.81 € *
Price list
Quantity
Price per unit*
150 pcs.
0.8092 €
650 pcs.
0.7973 €
*incl. VAT plus shipping costs
**Subject to prior sale
Modular connector, 1-2834017-3, TE Connectivity
The 1-2834017-3 is flexible, efficient and is easy to replace with no need for special tooling. This product enables design flexibility and the different color configurations helps ease identification. Also is enable to be used in the field of telecommunication system, lighting system, security, and wire arrangement of architectures.
Features
- Help save space with a high density compact design
- Obtain design flexibility with multifarious Product Pitch
Applications
- LED Driver
- Lighting system
- Power Supply
Technical specifications
| Connection | push-in | |
| AWG cross-section | AWG 20-16 | |
| Width | 12.6 mm | |
| Colour | green | |
| Height | 9.2 mm | |
| Contact distance | RM 3.81/5 | |
| Rated voltage | 300 V | |
| Rated current | 8 A | |
| Pin number | 3 pole | |
| Grid | 3.81 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
