1-284511-0 | TE Connectivity
PCB terminal, 10 pole, pitch 3.81 mm, AWG 30-14, 11 A, cage clamp, green, 1-284511-0
Order No.: 71P1809
EAN: 4099891627287
MPN:
1-284511-0
Unit Price (€ / pc.)
22.0626 € *
Available: 0 pcs.
Available in 5 Days: 62 pcs.
Leadtime: 23 Weeks **
Total Price:
22.06 € *
Price list
Quantity
Price per unit*
4 pcs.
22.0626 €
24 pcs.
18.5521 €
*incl. VAT plus shipping costs
**Subject to prior sale

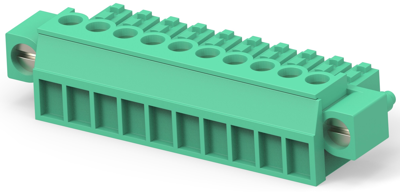

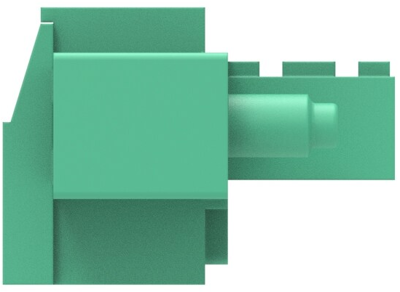

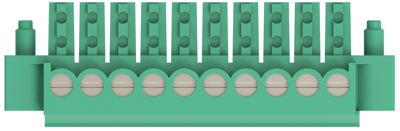

PCB Terminal, 1-284511-0, TE Connectivity
The 1-284511-0 provides a full range of two piece modular terminal block for headers. This product has funnel entry plug housing for easier wire insertion.
Features
- Built-in interlocks to assemble higher number of ways
- Polarization keys for easier mating
- Captive screw
Technical specifications
| Connection | cage clamp | |
| AWG cross-section | AWG 30-14 | |
| Width | 15.5 mm | |
| Colour | green | |
| Height | 11.1 mm | |
| Cable cross-section | 0.05-2 mm² | |
| Rated voltage | 300 V | |
| Rated current | 11 A | |
| Pin number | 10 pole | |
| Grid | 3.81 mm |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
