1-796867-2 | TE Connectivity

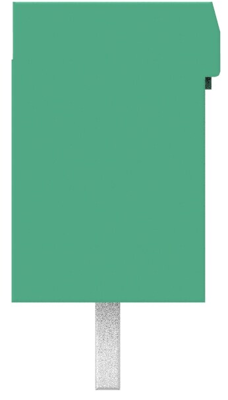

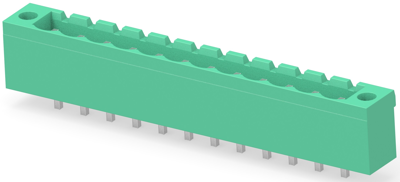

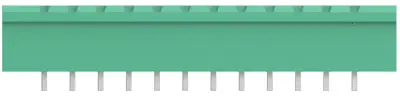

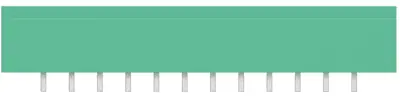

PCB terminal, 12 pole, pitch 5.08 mm, AWG 30-12, 15 A, pin, green, 1-796867-2
Order No.: 71P3538
MPN:
1-796867-2
Unit Price (€ / pc.)
9.6152 € *
Available: 0 pcs.
Available in 5 Days: 86 pcs.
Leadtime: 20 Weeks **
Total Price:
9.62 € *
Price list
Quantity
Price per unit*
1 pcs.
9.6152 €
10 pcs.
8.8536 €
50 pcs.
7.9611 €
100 pcs.
7.1638 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Terminal, 1-796867-2, TE Connectivity
The 1-796867-2 provides a full range of two piece modular terminal block for headers. This product has funnel entry plug housing for easier wire insertion.
Features
- Built-in interlocks to assemble higher number of ways
- Polarization keys for easier mating
- Captive screw
Technical specifications
| Connection | Stift | |
| AWG cross-section | AWG 30-12 | |
| Width | 8.35 mm | |
| Colour | grün | |
| Height | 12 mm | |
| Cable cross-section | 0,05-3 mm² | |
| Rated voltage | 300 V | |
| Rated current | 15 A | |
| Pin number | 12-polig | |
| Grid | 5.08 mm |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
