1437416-2 | TE Connectivity

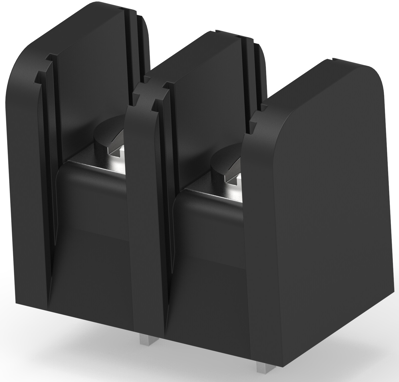

PCB terminal, 2 pole, AWG 12, 20 A, screw connection, black, 1437416-2
Order No.: 71P2115
EAN: 4099891627379
MPN:
1437416-2
Unit Price (€ / pc.)
2.1658 € *
Available: 0 pcs.
Available in 5 Days: 4,492 pcs.
Leadtime: 25 Weeks **
Total Price:
2.17 € *
Price list
Quantity
Price per unit*
42 pcs.
2.1658 €
200 pcs.
2.1063 €
*incl. VAT plus shipping costs
**Subject to prior sale
Marking strip, 1437416-2, TE Connectivity
Barrier strip, Dual barrier, Printed circuit pin, Wire-to-Board, 2 Position, 11.1 mm Centerline, 1 Row, 600 V, 12 AWG Wire size.
Applications
- Machine controls
- Power supplies
- Test & measurement
- Automation equipment
- Security/alarm devices
- Garage door openers
Technical specifications
| Connection | screw connection | |
| AWG cross-section | AWG 12 | |
| Width | 16 mm | |
| Colour | black | |
| Height | 21.08 mm | |
| Cable cross-section | 3.0 mm² | |
| Rated current | 20 A | |
| Pin number | 2 pole |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
