1437653-7 | TE Connectivity
PCB terminal, 7 pole, AWG 22 to 12, 25 A, screw connection, black, 1437653-7
Unit Price (€ / pc.)
6.5926 € *
Available: 0 pcs.
Leadtime: 33 Weeks **
Total Price:
6.59 € *
Price list
Quantity
Price per unit*
1 pcs.
6.5926 €
10 pcs.
6.0690 €
50 pcs.
5.4621 €
100 pcs.
4.9147 €
*incl. VAT plus shipping costs
**Subject to prior sale

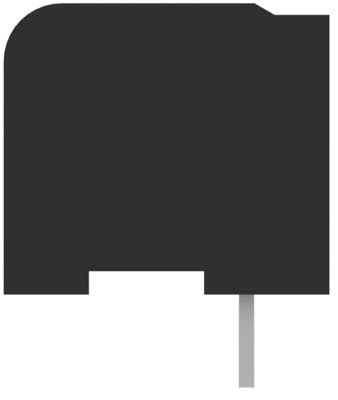

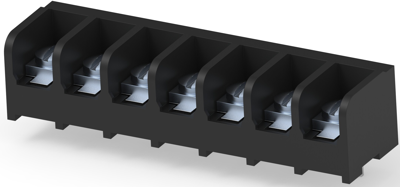

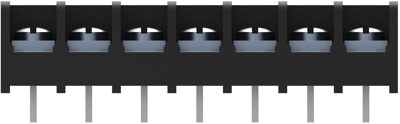

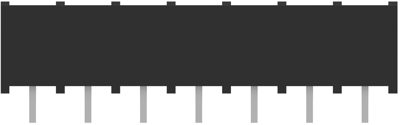

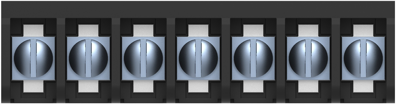

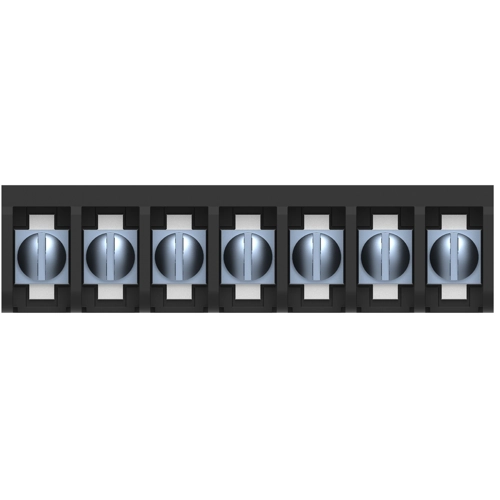

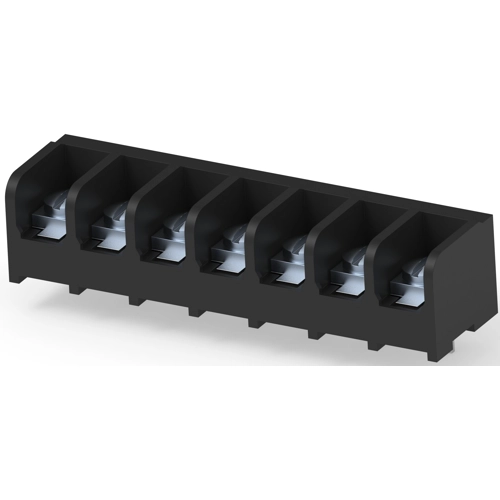

PCB terminal, 1437653-7, TE Connectivity
Barrier strip, Tri-Barrier, Printed circuit pin, Wire-to-Board, 7 Position, 9.53 mm Centerline, 1 Row, 600 V / 300 V.
Applications
- Machine control
- Power supplies
- Test & measurement
- Automation equipment
- Security/alarm devices
- Garage door openers
Technical specifications
| Connection | Schraubanschluss | |
| AWG cross-section | AWG 22 bis 12 | |
| Width | 17.78 mm | |
| Colour | schwarz | |
| Height | 15.88 mm | |
| Cable cross-section | 0,326-3,31 mm² | |
| Rated current | 25 A | |
| Pin number | 7-polig |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
