1546108-6 | TE Connectivity
PCB terminal, 6 pole, pitch 5.08 mm, AWG 30-12, 15 A, cage clamp, gray, 1546108-6
Order No.: 71P2310
EAN: 4099891627553
MPN:
1546108-6
Unit Price (€ / pc.)
5.9738 € *
Available: 0 pcs.
Available in 5 Days: 5,990 pcs.
Leadtime: 11 Weeks **
Total Price:
5.97 € *
Price list
Quantity
Price per unit*
1 pcs.
5.9738 €
10 pcs.
5.4978 €
50 pcs.
4.9504 €
100 pcs.
4.4506 €
*incl. VAT plus shipping costs
**Subject to prior sale

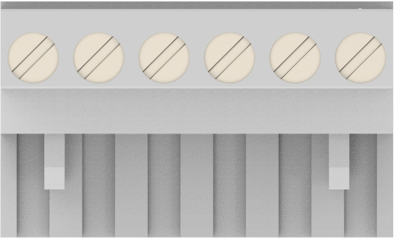

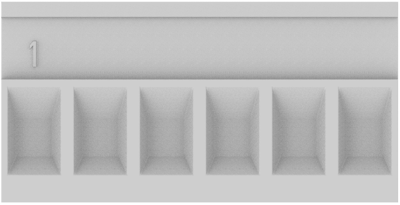

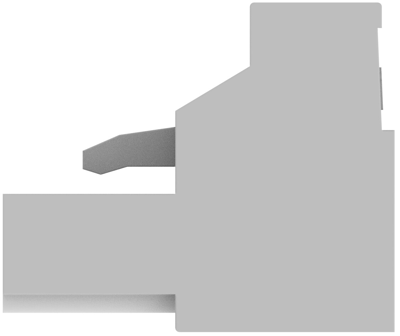

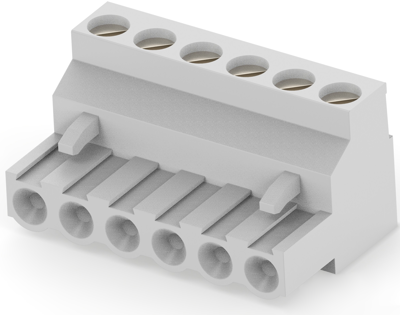

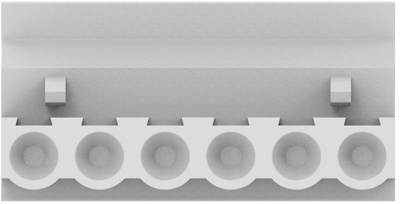

PCB Terminal, 1546108-6, TE Connectivity
The 1546108-6 provides a full range of two piece modular terminal block for headers. This product has funnel entry plug housing for easier wire insertion.
Features
- Built-in interlocks to assemble higher number of ways
- Polarization keys for easier mating
- Captive screw
Technical specifications
| Connection | Käfigklemme | |
| AWG cross-section | AWG 30-12 | |
| Width | 18.4 mm | |
| Colour | grau | |
| Height | 15.5 mm | |
| Cable cross-section | 0,05-3 mm² | |
| Rated voltage | 300 V | |
| Rated current | 15 A | |
| Pin number | 6-polig | |
| Grid | 5.08 mm |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
