1776166-2 | TE Connectivity
PCB terminal, 2 pole, pitch 5 mm, 15 A, pin, black, 1776166-2
Order No.: 71P3440
EAN: 4099891627966
MPN:
1776166-2
Unit Price (€ / pc.)
1.9040 € *
Available: 0 pcs.
Available in 5 Days: 528 pcs.
Leadtime: 12 Weeks **
Total Price:
1.90 € *
Price list
Quantity
Price per unit*
50 pcs.
1.9040 €
250 pcs.
1.7374 €
*incl. VAT plus shipping costs
**Subject to prior sale

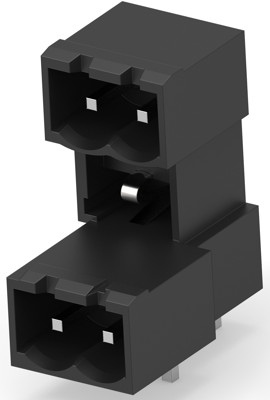

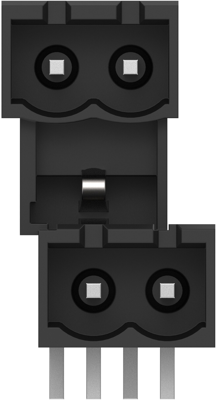

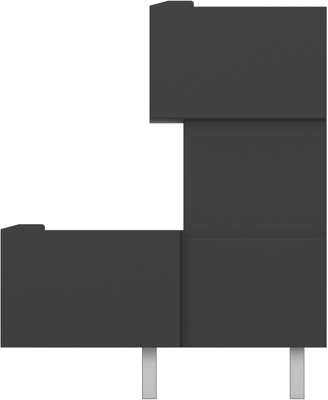

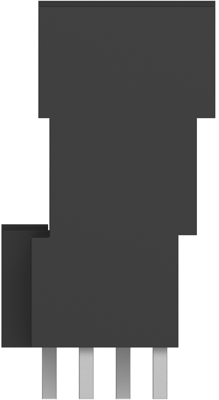

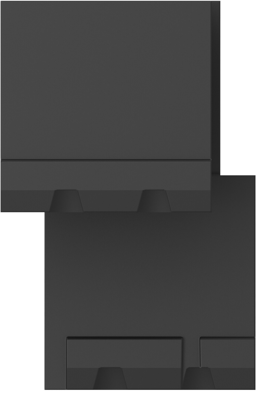

PCB Terminal, 1776166-2, TE Connectivity
The 1776166-2 provides a full range of two piece modular terminal block for headers. This product has funnel entry plug housing for easier wire insertion.
Features
- Built-in interlocks to assemble higher number of ways
- Polarization keys for easier mating
- Captive screw
Technical specifications
| Connection | pin | |
| Colour | black | |
| Height | 23.1 mm | |
| Contact distance | RM 5/10 | |
| Rated voltage | 300 V | |
| Rated current | 15 A | |
| Pin number | 2 pole | |
| Grid | 5 mm |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
